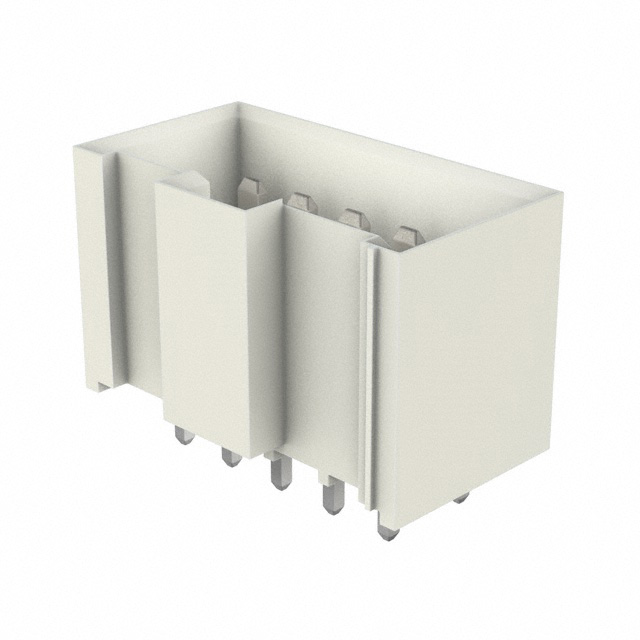

MDF6-12DP-3.5DSA(05)

MDF6-12DP-3.5DSA(05)

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF6-12DP-3.5DSA(05) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MDF6-12DP-3.5DSA(05)
Manufacturer	Hirose Electric Co Ltd
Description	CONN HDR 12POS 3.5MM
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 69033 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$0.455

Product parameter

Product parameter

Part Number	MDF6-12DP-3.5DSA(05)	Manufacturer	Hirose Electric Co Ltd
Description	CONN HDR 12POS 3.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	69033 pcs	Data sheet
Category	Connectors, Interconnects	Termination	Solder
Stacking Direction	Male Pin	Shrouding	0.138" (3.50mm)
Series	MDF6	Row Spacing - Mating	Shrouded
RoHS Status	Bulk	Other Names	547-0087-3-05
Number of Rows	2	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	All	Manufacturer Standard Lead Time	8 Weeks
Manufacturer Part Number	MDF6-12DP-3.5DSA(05)	Features	-
Expanded Description	12 Positions Header Connector 0.138" (3.50mm) Through Hole Tin	Description	CONN HDR 12POS 3.5MM
Current - Max/Contact	Latch Holder	Contact Length - Post	0.220" (5.59mm)
Contact Length - Mating	0.197" (5.00mm)	Contact Finish Thickness - Mating	Tin
Contact Finish - Post	-	Connector Type	Header
Actual Diameter	White
