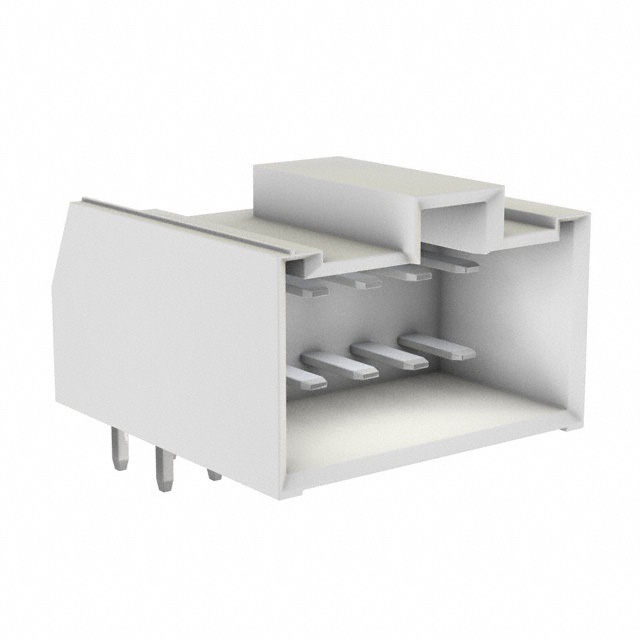

MDF6-10DP-3.5DS(05)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MDF6-10DP-3.5DS(05) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MDF6-10DP-3.5DS(05) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MDF6-10DP-3.5DS(05) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HDR 10POS 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.802 | $0.727 | $0.682 | $0.652 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.623 | $0.563 | $0.519 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MDF6-10DP-3.5DS(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 10POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 72813 pcs | Data sheet | MDF6-xDP-3.5DS(05) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 300V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | MDF6 |
| Row Spacing - Mating | 0.197" (5.00mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 547-0273-8-05 H124165 MDF6-10DP-3.5DS(05)-ND |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.445" (11.30mm) | Insulation Color | White |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.138" (3.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | 0.220" (5.59mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Copper |
| Connector Type | Header | Applications | - |
