DF13C-9P-1.25V(20)

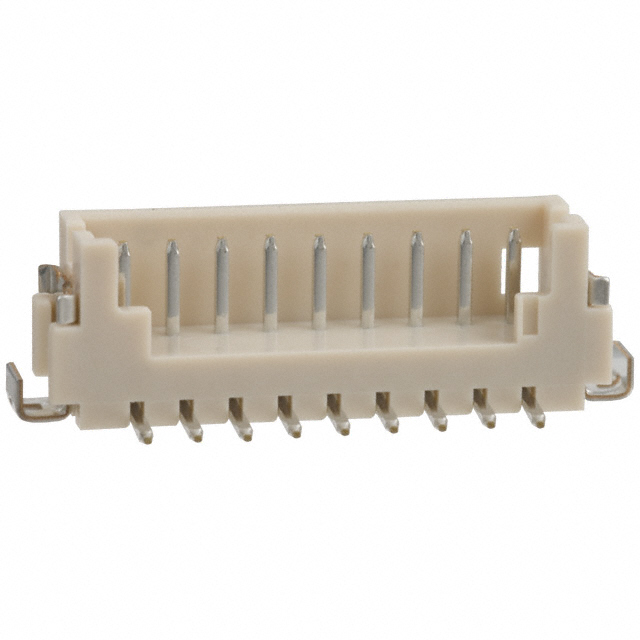

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13C-9P-1.25V(20) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13C-9P-1.25V(20) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13C-9P-1.25V(20) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN HEADER 9POS 1.25MM SMD TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13C-9P-1.25V(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 9POS 1.25MM SMD TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4294 pcs | Data sheet | DF13 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | DF13 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | *DF13C-9P-1.25V(20) H3426 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.189" (4.80mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 9 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
