DF13C-7P-1.25V(51)

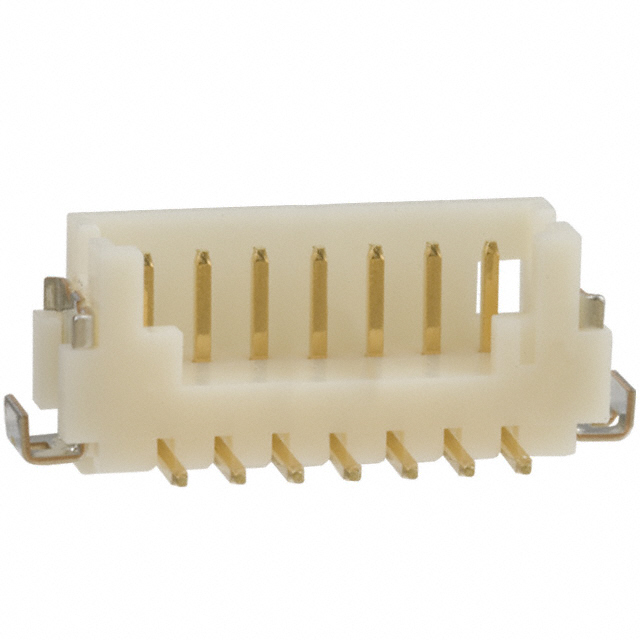

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13C-7P-1.25V(51) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13C-7P-1.25V(51) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13C-7P-1.25V(51) |
|---|---|
| Manufacturer | Hirose |
| Description | CONN SHROUDED HEADER HDR 7 POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.389 | $0.342 | $0.295 | $0.242 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13C-7P-1.25V(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN SHROUDED HEADER HDR 7 POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92628 pcs | Data sheet | DF13C-xP-1.25V(51) DrawingDF13 Series DatasheetDF13C-7P-1.25V(51) Spec Sheet |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | DF13 |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | H125717CT | Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 7 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
