DF13E-10DP-1.25V(25)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13E-10DP-1.25V(25) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13E-10DP-1.25V(25) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13E-10DP-1.25V(25) |
|---|---|
| Manufacturer | Hirose |

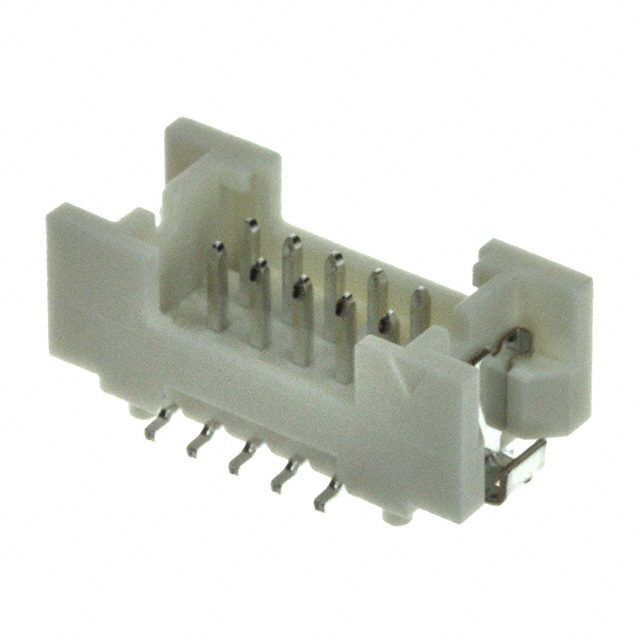

| Description | CONN HEADER 10POS 1.25MM SMD TIN |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | 520 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.23 | $0.194 | $0.165 | $0.144 | $0.119 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13E-10DP-1.25V(25) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 10POS 1.25MM SMD TIN | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 178469 pcs | Data sheet | DF13 Series DatasheetDF13E-xDP-1.25V(25) DrawingDF13E-xDP-1.25V(25) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF13 |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 536-0566-0-25 H125333-5 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.8mm |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin-Copper |
| Connector Type | Header | Applications | - |
