DF13E-10DP-1.25V(55)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DF13E-10DP-1.25V(55) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DF13E-10DP-1.25V(55) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DF13E-10DP-1.25V(55) |
|---|---|
| Manufacturer | Hirose |

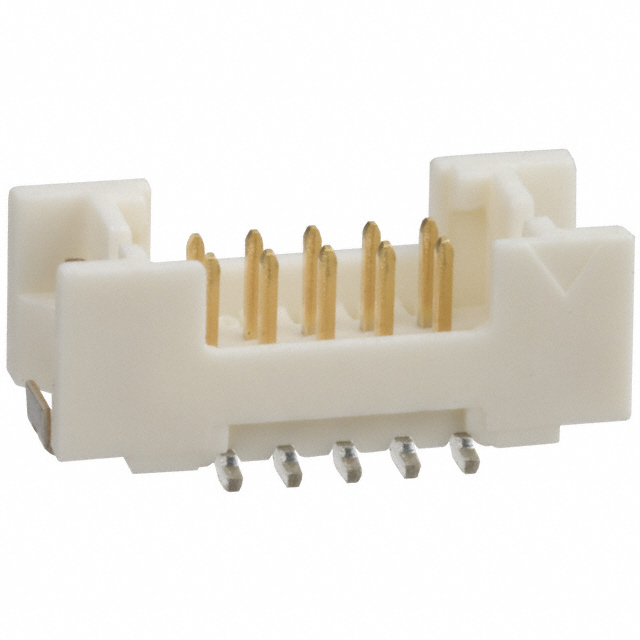

| Description | CONN HEADER 10POS 1.25MM SMD AU |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | 520 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.268 | $0.225 | $0.192 | $0.167 | $0.137 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | DF13E-10DP-1.25V(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 10POS 1.25MM SMD AU | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 167127 pcs | Data sheet | DF13 Series DatasheetDF13E-xDP-1.25V(55) DrawingDF13E-xDP-1.25V(55) Spec |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | DF13 |
| Row Spacing - Mating | 0.049" (1.25mm) | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 536-0566-0-55 H125334-5 |
Operating Temperature | -35°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.8mm | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.189" (4.80mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Board Guide, Solder Retention | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 10 position 0.049" (1.25mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Tin-Copper |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
