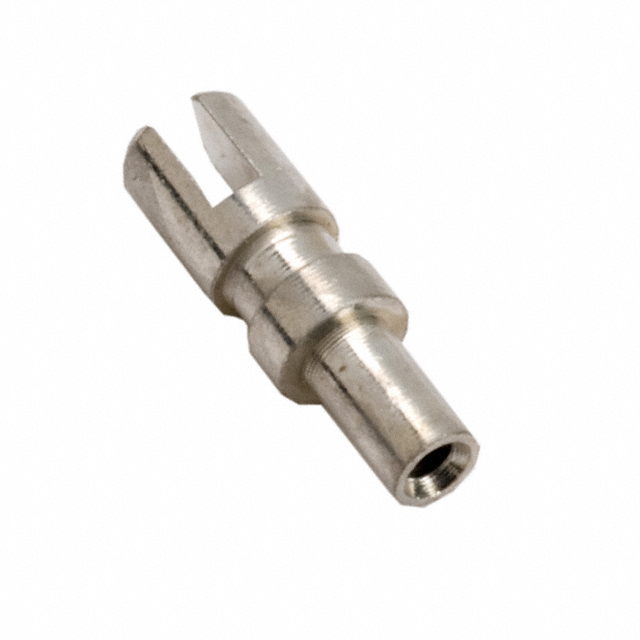

H9023-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H9023-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H9023-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H9023-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=3.96MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.149 | $0.138 | $0.125 | $0.111 | $0.106 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.097 | $0.092 | $0.076 | $0.069 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H9023-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=3.96MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 276032 pcs | Data sheet | H9023 DrawingPCB Hardware Catalog |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | - |
| Staking Side ID | 0.039" (1.00mm) | Series | - |
| Other Names | 952-1454 H902301 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.050" ~ 0.054" (1.27mm ~ 1.37mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.238" (6.04mm) |
| Length - Below Flange | 0.082" (2.08mm) | Length - Above Board | 0.156" (3.96mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.072" (1.83mm) |
| Diameter - Turret Head | - | Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.156" (3.96mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
