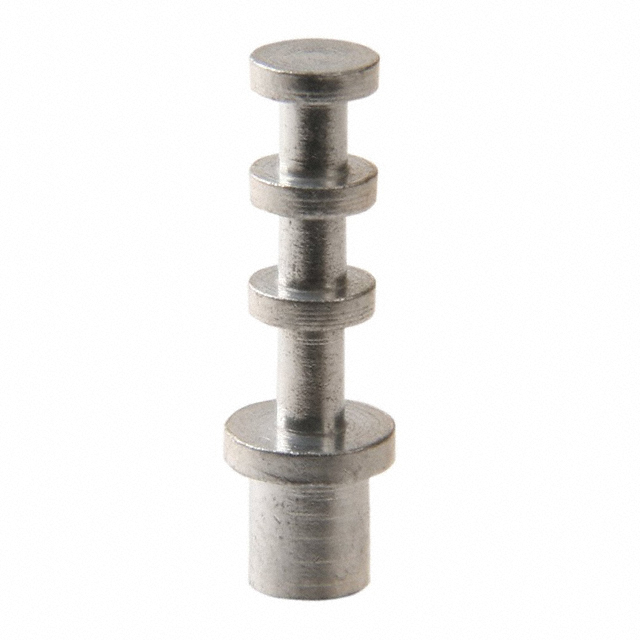

H9020-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H9020-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H9020-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H9020-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SINGLE L=7.65MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.17 | $0.159 | $0.137 | $0.116 | $0.112 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.10 | $0.096 | $0.08 | $0.073 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H9020-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=7.65MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 285897 pcs | Data sheet | H9020-22 DrawingPCB Hardware Catalog |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End | Staking Side OD | - |
| Staking Side ID | 0.064" (1.63mm) | Series | - |
| Other Names | 952-1452 H902001 |
Number of Turrets | Triple |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.092" ~ 0.096" (2.34mm ~ 2.44mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.395" (10.03mm) |
| Length - Below Flange | 0.094" (2.39mm) | Length - Above Board | 0.301" (7.65mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | 0.093" (2.36mm) | Detailed Description | Terminal Turret Connector Single End 0.301" (7.65mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
