Home > Products > Connectors, Interconnects > Terminals - Turret Connectors > H9005-01

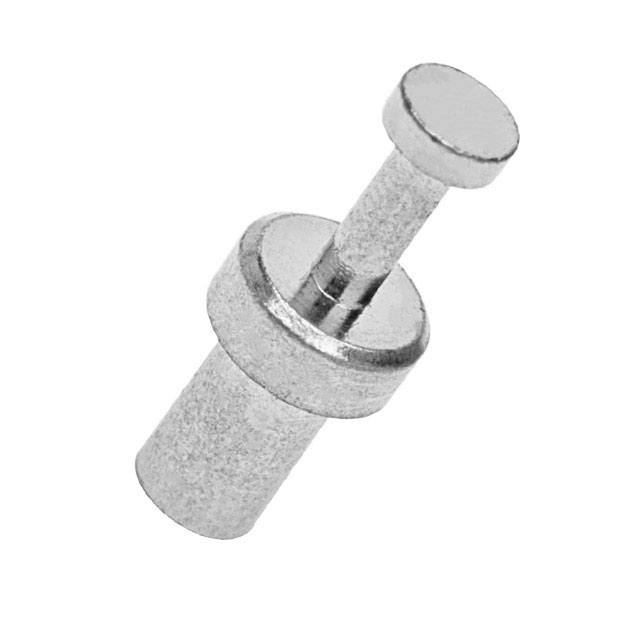

H9005-01

H9005-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H9005-01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number H9005-01
Manufacturer Harwin
Description TERM TURRET SINGLE L=4.88MM TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 4352 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number H9005-01 Manufacturer Harwin
Description TERM TURRET SINGLE L=4.88MM TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4352 pcs Data sheet H9005-01 DrawingPCB Hardware Catalog
Category Connectors, Interconnects Termination Swage
Terminal Type Single End Staking Side OD -
Staking Side ID 0.055" (1.40mm) Series -
Number of Turrets Single Mounting Type Through Hole
Mounting Hole Diameter 0.079" ~ 0.082" (2.01mm ~ 2.08mm) Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material - Insulation - Length - Overall 0.314" (7.98mm)
Length - Below Flange 0.125" ~ 0.130" (3.18mm ~ 3.30mm) Length - Above Board 0.192" (4.88mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Color -
Insulation Non-Insulated Flange Diameter 0.125" (3.18mm)
Diameter - Turret Head 0.078" (1.98mm) Detailed Description Terminal Turret Connector Single End 0.192" (4.88mm) Tin
Contact Material Brass Alloy Contact Finish Thickness -
Contact Finish Tin Board Thickness -
