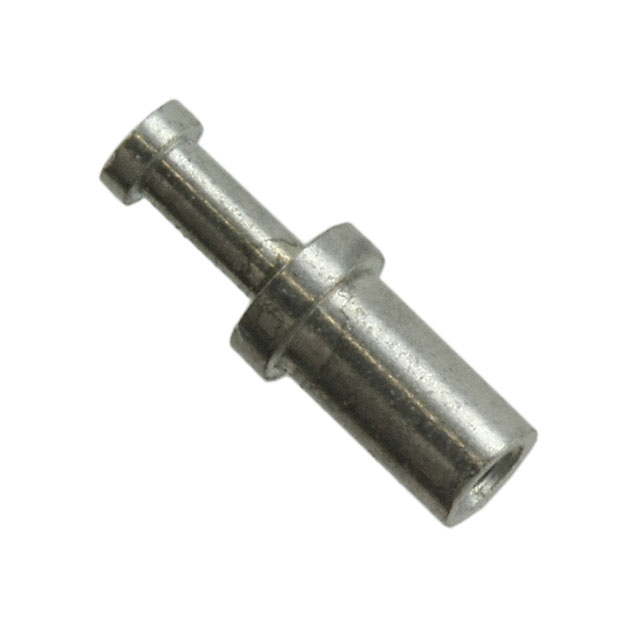

H9001-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H9001-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H9001-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H9001-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SINGLE L=2.39MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.106 | $0.10 | $0.086 | $0.073 | $0.07 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.063 | $0.06 | $0.05 | $0.046 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H9001-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=2.39MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 491799 pcs | Data sheet | PCB Hardware CatalogH9001 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End | Staking Side OD | - |
| Staking Side ID | 0.028" (0.71mm) | Series | - |
| Other Names | 952-1450 H900101 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.049" ~ 0.052" (1.24mm ~ 1.32mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.176" (4.47mm) |
| Length - Below Flange | 0.082" ~ 0.084" (2.08mm ~ 2.13mm) | Length - Above Board | 0.094" (2.39mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.062" (1.57mm) |
| Diameter - Turret Head | 0.040" (1.02mm) | Detailed Description | Terminal Turret Connector Single End 0.094" (2.39mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
