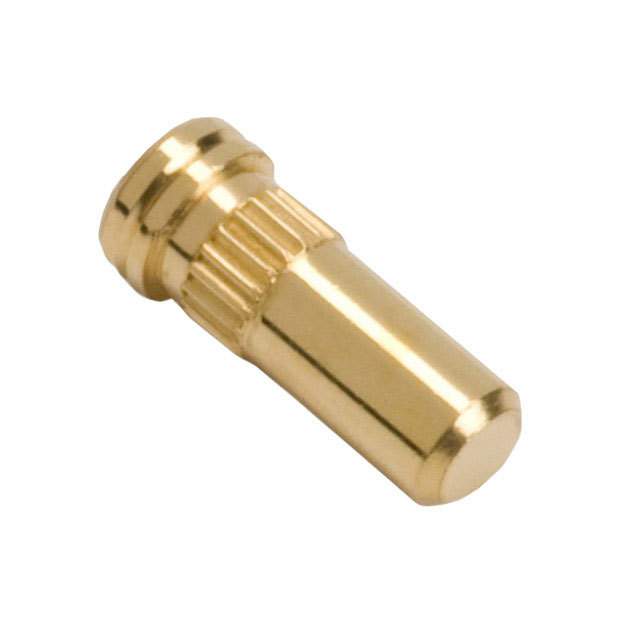

H8501-05

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H8501-05 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	H8501-05
Manufacturer	Harwin
Description	CONN PIN RCPT .023-.033 KNURL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 231015 pcs
Reference Price (In US Dollars)	5000 pcs
Reference Price (In US Dollars)	$0.089

Product parameter
Data sheet

Product parameter

Part Number	H8501-05	Manufacturer	Harwin
Description	CONN PIN RCPT .023-.033 KNURL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	231015 pcs	Data sheet	H8501 Drawing PC Sockets Catalog
Category	Connectors, Interconnects	Termination	Press-Fit, Knurled
Tail Type	No Tail	Tail Diameter	-
Socket Depth	0.183" (4.65mm)	Series	-
Pin Hole Diameter	-	Packaging	Bulk
Operating Temperature	-55°C ~ 125°C	Mounting Hole Diameter	0.075" ~ 0.077" (1.91mm ~ 1.96mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	5 Weeks
Length - Overall	0.224" (5.69mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Force	1.50N ~ 5.01N	Flange Diameter	0.093" (2.36mm)
Features	-	Detailed Description	Pin Receptacle Connector 0.023" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Press-Fit, Knurled
Contact Material	Beryllium Copper	Contact Finish Thickness	5.90µin (0.150µm)
Contact Finish	Gold	Board Thickness	-
Accepts Square Pin Size	-	Accepts Pin Diameter	0.023" ~ 0.033" (0.60mm ~ 0.85mm)
