H8501-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H8501-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H8501-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H8501-01 |
|---|---|
| Manufacturer | Harwin |

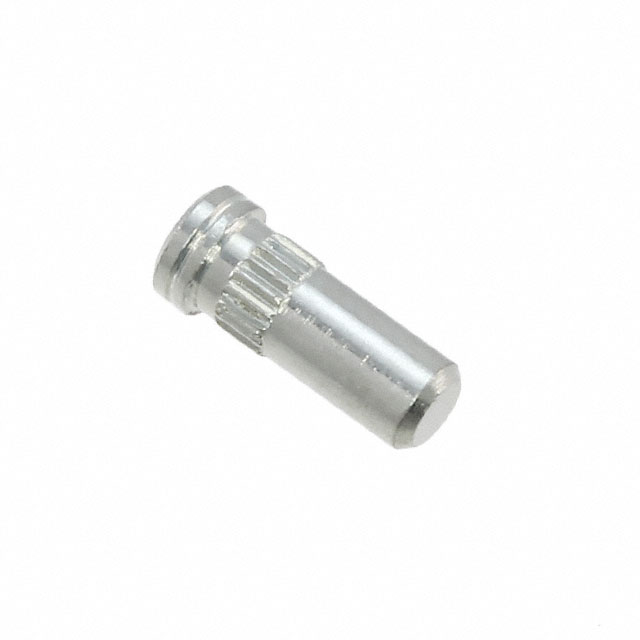

| Description | CONN PIN RCPT .023-.033 KNURL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.16 | $0.15 | $0.135 | $0.12 | $0.115 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.105 | $0.10 | $0.083 | $0.075 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H8501-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .023-.033 KNURL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 277824 pcs | Data sheet | H8501 DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.183" (4.65mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 952-1463 H850101 |
Operating Temperature | -55°C ~ 125°C |
| Mounting Hole Diameter | 0.075" ~ 0.077" (1.91mm ~ 1.96mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.224" (5.69mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | 1.50N ~ 5.01N |
| Flange Diameter | 0.093" (2.36mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.023" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Press-Fit, Knurled | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 5.90µin (0.150µm) | Contact Finish | Gold |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.023" ~ 0.033" (0.60mm ~ 0.85mm) |
