H8505-05
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H8505-05 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H8505-05 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H8505-05 |
|---|---|
| Manufacturer | Harwin |

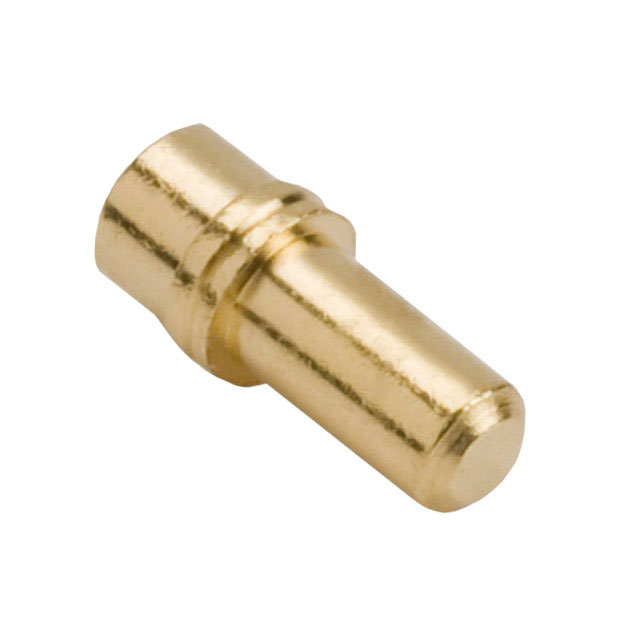

| Description | CONN PIN RCPT .023-.033 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.091 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H8505-05 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PIN RCPT .023-.033 SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 259435 pcs | Data sheet | H8505 DrawingPC Sockets Catalog |
| Category | Connectors, Interconnects | Termination | Solder |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.130" (3.30mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Operating Temperature | -55°C ~ 125°C | Mounting Hole Diameter | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 7 Weeks |
| Length - Overall | 0.232" (5.89mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Force | 1.50N ~ 5.01N | Flange Diameter | 0.105" (2.67mm) |
| Features | - | Detailed Description | Pin Receptacle Connector 0.023" ~ 0.033" (0.60mm ~ 0.85mm) No Tail Solder |
| Contact Material | Beryllium Copper | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Board Thickness | - |
| Accepts Square Pin Size | - | Accepts Pin Diameter | 0.023" ~ 0.033" (0.60mm ~ 0.85mm) |
