H2074Z01

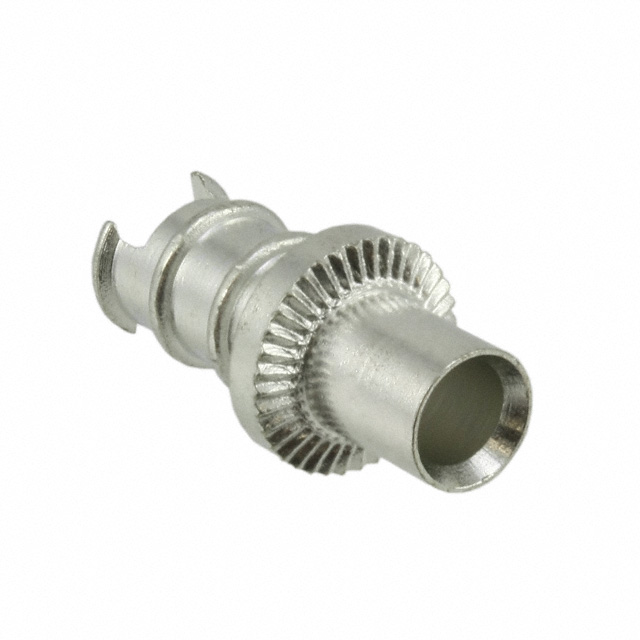

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2074Z01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2074Z01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2074Z01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SLOTTED L=8.74MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.178 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2074Z01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SLOTTED L=8.74MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 120334 pcs | Data sheet | H2074Z01 DrawingPCB Hardware Catalog |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork | Staking Side OD | 0.152" ~ 0.154" (3.86mm ~ 3.92mm) |
| Staking Side ID | 0.109" ~ 0.112" (2.77mm ~ 2.85mm) | Series | - |
| Other Names | 952-1432 | Number of Turrets | Triple |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.155" ~ 0.159" (3.94mm ~ 4.04mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.515" (13.08mm) |
| Length - Below Flange | 0.171" (4.34mm) | Length - Above Board | 0.344" (8.74mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.250" (6.35mm) |
| Diameter - Turret Head | 0.180" (4.57mm) | Detailed Description | Terminal Turret Connector Single End, Fork 0.344" (8.74mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.126" (3.20mm) |
