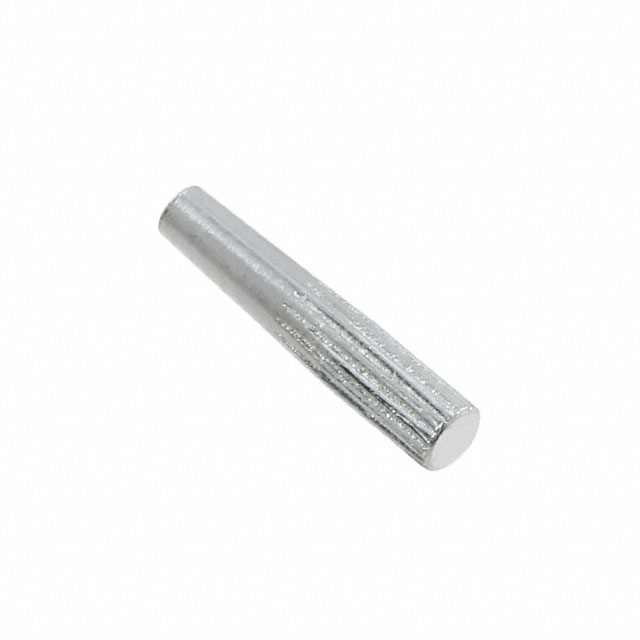

H2085-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2085-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2085-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2085-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PC PIN TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.191 | $0.179 | $0.161 | $0.143 | $0.137 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.125 | $0.119 | $0.098 | $0.089 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2085-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN PC PIN TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 257187 pcs | Data sheet | H2085-xx Drawing |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | - | Packaging | Bulk |
| Other Names | 952-2825 H2085-01-ND |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.051" ~ 0.053" (1.30mm ~ 1.35mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 5 Weeks |
| Length - Overall | 0.281" (7.14mm) | Length - Below Flange | - |
| Length - Above Flange | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | - | Detailed Description | PC Pin Terminal Connector Through Hole Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.094" (2.39mm) |
