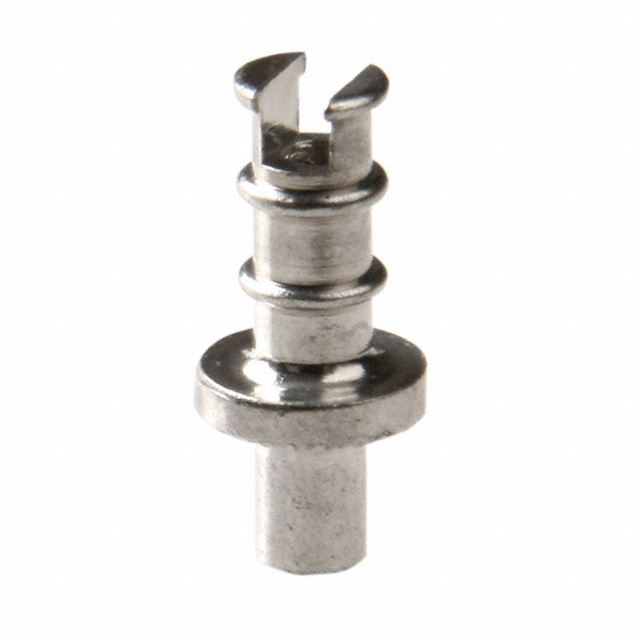

H2072-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2072-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2072-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2072-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SLOTTED L=6.35MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.215 | $0.20 | $0.18 | $0.16 | $0.154 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.14 | $0.134 | $0.11 | $0.10 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2072-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SLOTTED L=6.35MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 229143 pcs | Data sheet | H2072 DrawingPCB Hardware Catalog |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork | Staking Side OD | 0.080" ~ 0.085" (2.03mm ~ 2.16mm) |
| Staking Side ID | 0.055" ~ 0.060" (1.40mm ~ 1.53mm) | Series | - |
| Other Names | 952-1428 H207201 |
Number of Turrets | Triple |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.085" ~ 0.089" (2.17mm ~ 2.26mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.344" (8.74mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | Length - Above Board | 0.250" (6.35mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.156" (3.96mm) |
| Diameter - Turret Head | 0.128" (3.25mm) | Detailed Description | Terminal Turret Connector Single End, Fork 0.250" (6.35mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
