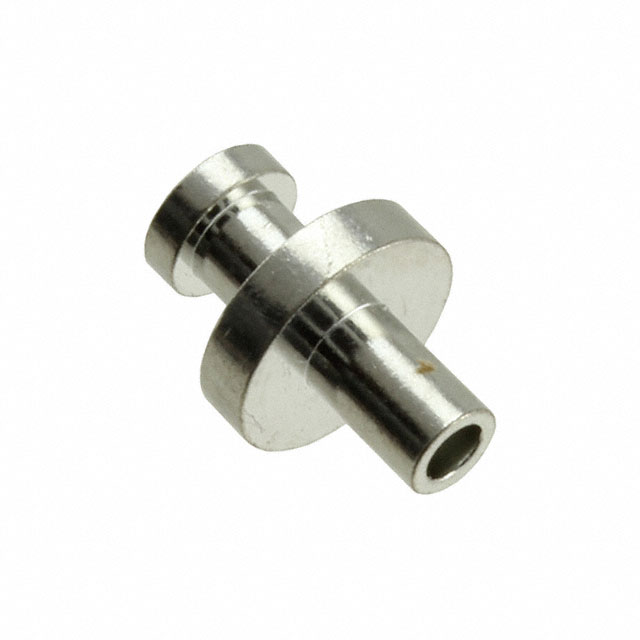

H2061-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2061-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2061-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2061-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET SINGLE L=3.18MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.157 | $0.146 | $0.131 | $0.116 | $0.112 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.102 | $0.097 | $0.08 | $0.073 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2061-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=3.18MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 261338 pcs | Data sheet | H2061-01 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End | Staking Side OD | 0.059" ~ 0.063" (1.50mm ~ 1.59mm) |
| Staking Side ID | - | Series | - |
| Other Names | 952-2823 H2061-01-ND |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.063" ~ 0.066" (1.60mm ~ 1.68mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 7 Weeks | Length - Overall | 0.219" (5.56mm) |
| Length - Below Flange | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) | Length - Above Board | 0.125" (3.18mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.156" ~ 0.161" (3.96mm ~ 4.09mm) |
| Diameter - Turret Head | 0.089" ~ 0.094" (2.26mm ~ 2.39mm) | Detailed Description | Terminal Turret Connector Single End 0.125" (3.18mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.063" (1.60mm) |
