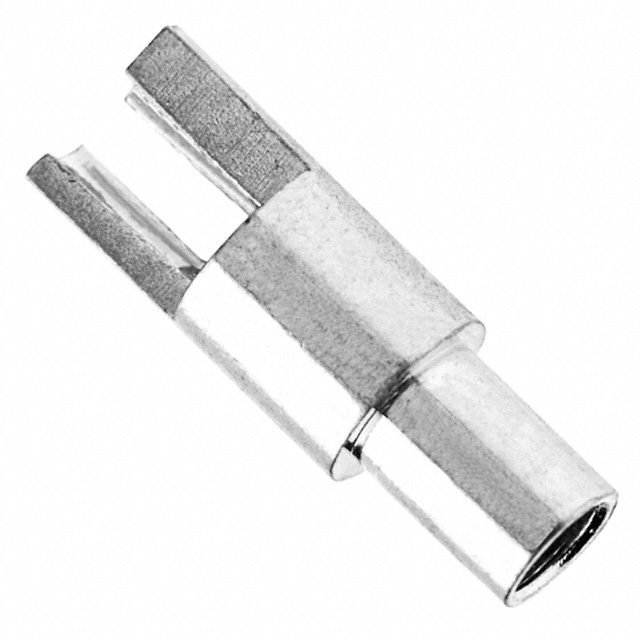

H2055-01
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H2055-01 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy H2055-01 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | H2055-01 |
|---|---|
| Manufacturer | Harwin |
| Description | TERM TURRET HOLLOW L=6.35MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.142 | $0.135 | $0.116 | $0.098 | $0.095 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.085 | $0.081 | $0.068 | $0.062 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | H2055-01 | Manufacturer | Harwin |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=6.35MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 337559 pcs | Data sheet | PCB Hardware CatalogH2055 Drawing |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | Single End, Fork, Hollow | Staking Side OD | 0.091" ~ 0.094" (2.31mm ~ 2.39mm) |
| Staking Side ID | 0.067" ~ 0.070" (1.70mm ~ 1.78mm) | Series | - |
| Other Names | 952-1426 H205501 |
Number of Turrets | Single |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.094" ~ 0.097" (2.39mm ~ 2.46mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Overall | 0.375" (9.53mm) |
| Length - Below Flange | 0.125" ~ 0.130" (3.18mm ~ 3.30mm) | Length - Above Board | 0.250" (6.35mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.125" (3.18mm) |
| Diameter - Turret Head | - | Detailed Description | Terminal Turret Connector Single End, Fork, Hollow 0.250" (6.35mm) Tin |
| Contact Material | Brass Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.094" (2.39mm) |
