Home > Products > Circuit Protection > PTC Resettable Fuses > LR4-900F

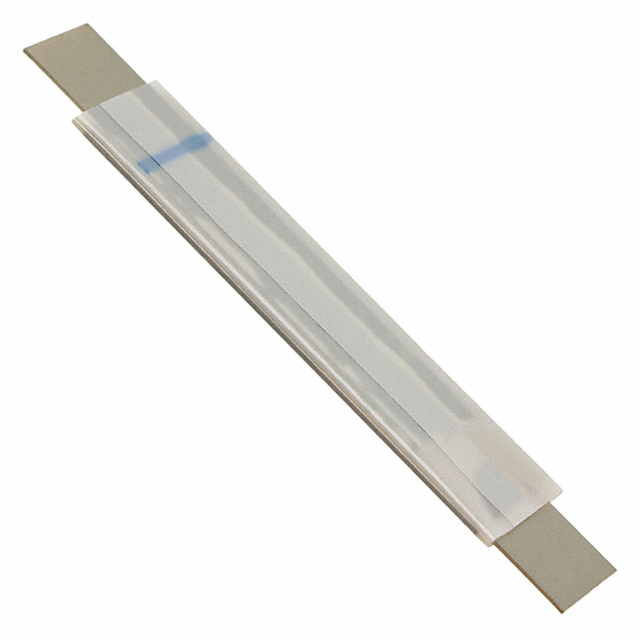

LR4-900F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR4-900F with confidence from Components-World.HK, 1 Year Warranty

Dowload LR4-900F Details in PDF

Request a Quote

Part Number	LR4-900F
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 20V 9A STRAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 89834 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.565	$0.536	$0.509	$0.411	$0.349
	$0.34	$0.286	$0.255	$0.223

Product parameter
Data sheet

Product parameter

Part Number	LR4-900F	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 20V 9A STRAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	89834 pcs	Data sheet	LR4-900F Spec PolySwitch, Strap Battery Catalog
Category	Circuit Protection	Voltage - Max	20V
Type	Polymeric	Time to Trip	5s
Thickness (Max)	0.039" (1.00mm)	Size / Dimension	1.831" L x 0.323" W (46.50mm x 8.20mm)
Series	PolySwitch®, LR4	Resistance - Post Trip (R1) (Max)	14 mOhms
Resistance - Initial (Ri) (Min)	6 mOhms	Ratings	-
Packaging	Bulk	Package / Case	Strap
Other Names	C11916-000 RF1534-000 RF1534-000-ND RF1534000	Operating Temperature	-40°C ~ 85°C
Mounting Type	User Defined	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Detailed Description	Polymeric PTC Resettable Fuse 20V 9A Ih User Defined Strap	Current - Trip (It)	16.7A
Current - Max	100A	Current - Hold (Ih) (Max)	9A
Approvals	CSA, TUV, UL
