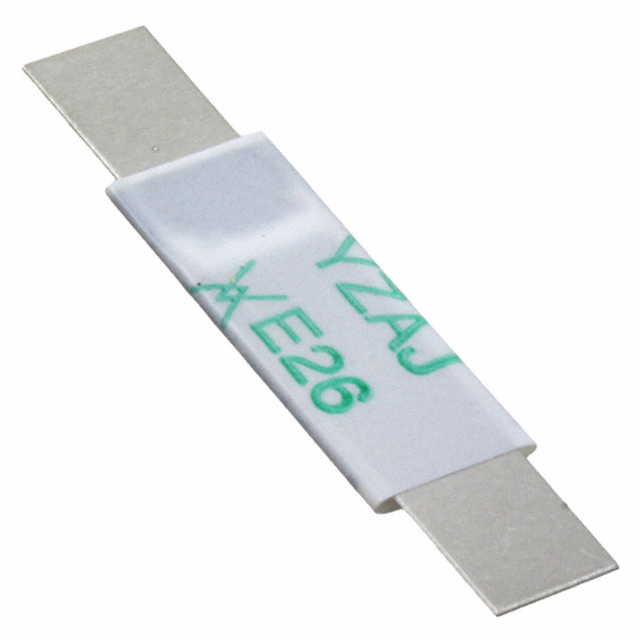

LR4-260F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR4-260F with confidence from Components-World.HK, 1 Year Warranty
Dowload LR4-260F Details in PDFSee Product Specifications for product details.
Buy LR4-260F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LR4-260F |
|---|---|
| Manufacturer | Hamlin / Littelfuse |
| Description | PTC RESET FUSE 15V 2.6A STRAP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.291 | $0.283 | $0.264 | $0.219 | $0.182 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.178 | $0.15 | $0.132 | $0.118 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LR4-260F | Manufacturer | Hamlin / Littelfuse |
|---|---|---|---|
| Description | PTC RESET FUSE 15V 2.6A STRAP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 160674 pcs | Data sheet | LR4-260F SpecPolySwitch, Strap Battery Catalog |
| Category | Circuit Protection | Voltage - Max | 15V |
| Type | Polymeric | Time to Trip | 5s |
| Thickness (Max) | 0.039" (1.00mm) | Size / Dimension | 0.866" L x 0.205" W (22.00mm x 5.20mm) |
| Series | PolySwitch®, LR4 | Resistance - Post Trip (R1) (Max) | 63 mOhms |
| Resistance - Initial (Ri) (Min) | 20 mOhms | Ratings | - |
| Packaging | Bulk | Package / Case | Strap |
| Other Names | D03110-000 RF1543-000 RF1543-000-ND RF1543000 |
Operating Temperature | -40°C ~ 85°C |
| Mounting Type | User Defined | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | - |
| Detailed Description | Polymeric PTC Resettable Fuse 15V 2.6A Ih User Defined Strap | Current - Trip (It) | 5.8A |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 2.6A |
| Approvals | CSA, TUV, UL |
