Home > Products > Circuit Protection > PTC Resettable Fuses > LR4-450F

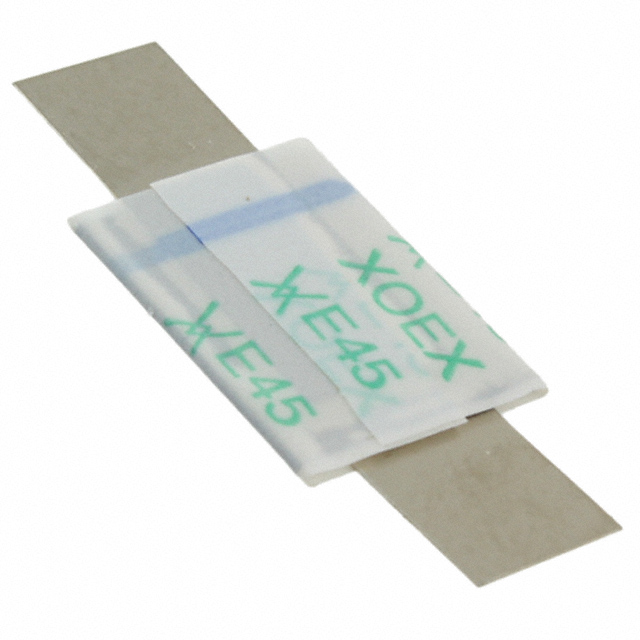

LR4-450F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR4-450F with confidence from Components-World.HK, 1 Year Warranty

Dowload LR4-450F Details in PDF

Request a Quote

Part Number	LR4-450F
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 20V 4.5A STRAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 115730 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.179

Product parameter
Data sheet

Product parameter

Part Number	LR4-450F	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 20V 4.5A STRAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	115730 pcs	Data sheet	LR4-450F Spec PolySwitch, Strap Battery Catalog
Category	Circuit Protection	Voltage - Max	20V
Type	Polymeric	Time to Trip	5s
Thickness (Max)	0.039" (1.00mm)	Size / Dimension	0.984" L x 0.413" W (25.00mm x 10.50mm)
Series	PolySwitch®, LR4	Resistance - Post Trip (R1) (Max)	28 mOhms
Resistance - Initial (Ri) (Min)	11 mOhms	Ratings	-
Packaging	Bulk	Package / Case	Strap
Other Names	177226-000 RF1542-000 RF1542-000-ND RF1542000	Operating Temperature	-40°C ~ 85°C
Mounting Type	User Defined	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Spacing	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	-
Detailed Description	Polymeric PTC Resettable Fuse 20V 4.5A Ih User Defined Strap	Current - Trip (It)	8.9A
Current - Max	100A	Current - Hold (Ih) (Max)	4.5A
Approvals	CSA, TUV, UL
