Home > Products > Circuit Protection > PTC Resettable Fuses > LR4-260SF

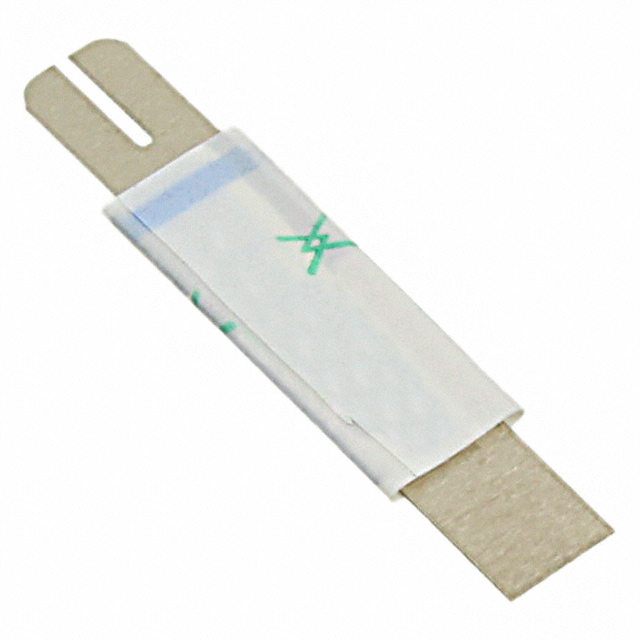

LR4-260SF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LR4-260SF with confidence from Components-World.HK, 1 Year Warranty

Dowload LR4-260SF Details in PDF

Request a Quote

Part Number	LR4-260SF
Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 15V 2.6A STRAP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 188302 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	50 pcs	100 pcs
	$0.283	$0.275	$0.257	$0.213	$0.177
	$0.173	$0.146	$0.128	$0.115

Product parameter
Data sheet

Product parameter

Part Number	LR4-260SF	Manufacturer	Hamlin / Littelfuse
Description	PTC RESET FUSE 15V 2.6A STRAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	188302 pcs	Data sheet	Battery Devices Short Form Catalog LR4-260SF Spec PolySwitch, Strap Battery Catalog
Category	Circuit Protection	Voltage - Max	15V
Type	Polymeric	Time to Trip	5s
Size / Dimension	0.866" L x 0.205" W (22.00mm x 5.20mm)	Series	PolySwitch®, LR4
Resistance - Post Trip (R1) (Max)	63 mOhms	Resistance - Initial (Ri) (Min)	20 mOhms
Ratings	-	Packaging	Bulk
Package / Case	Strap	Other Names	D90027-000 RF1539-000 RF1539-000-ND RF1539000
Operating Temperature	-40°C ~ 85°C	Mounting Type	User Defined
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Polymeric PTC Resettable Fuse 15V 2.6A Ih User Defined Strap	Current - Trip (It)	5.8A
Current - Max	100A	Current - Hold (Ih) (Max)	2.6A
Approvals	CSA, TUV, UL
