Home > Products > Circuit Protection > Fuseholders > 04820017ZXB

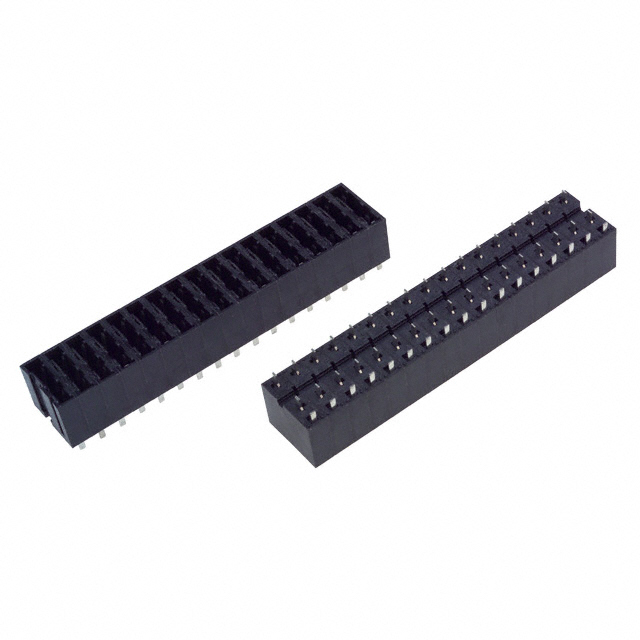

04820017ZXB

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 04820017ZXB with confidence from Components-World.HK, 1 Year Warranty

Dowload 04820017ZXB Details in PDF

Request a Quote

Part Number	04820017ZXB
Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3538 pcs
Reference Price (In US Dollars)	5 pcs
Reference Price (In US Dollars)	$9.079

Product parameter
Data sheet

Product parameter

Part Number	04820017ZXB	Manufacturer	Hamlin / Littelfuse
Description	FUSE HOLDER BLADE 125V 15A PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3538 pcs	Data sheet	482 Series
Category	Circuit Protection	Voltage	125V
Termination Style	PC Pin	Series	482
Other Names	F1416	Orientation	Vertical
Number of Circuits	17	Mounting Type	PCB
Moisture Sensitivity Level (MSL)	Not Applicable	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Fuseholder Type	Holder
Fuse Type	Blade	Fuse Size	0.665" L x 0.315" W x 0.772" H (16.9mm x 8mm x 19.6mm)
For Use With/Related Products	481 Alarm Fuse	Detailed Description	Fuse Holder 15A 125V 17 Circuit Blade PCB
Current Rating	15A	Contact Material	Beryllium Copper
Contact Finish	Tin
