SIZF906ADT-T1-GE3

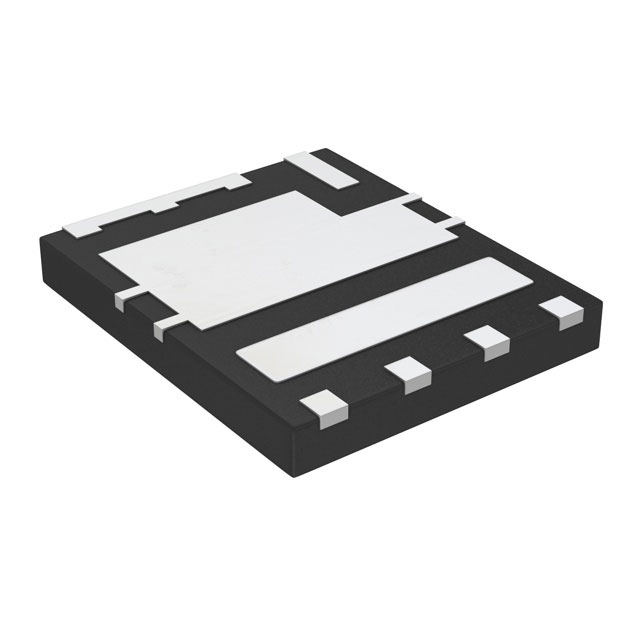

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIZF906ADT-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIZF906ADT-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIZF906ADT-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET DUAL N-CHAN 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.272 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIZF906ADT-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET DUAL N-CHAN 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88211 pcs | Data sheet | SIZF906ADT |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 8-PowerPair® (6x5) | Series | TrenchFET® Gen IV |
| Rds On (Max) @ Id, Vgs | 3.8 mOhm @ 15A, 10V, 1.17 mOhm @ 20A, 10V | Power - Max | 4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | 8-PowerWDFN |
| Other Names | SIZF906ADT-T1-GE3TR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2000pF @ 15V, 8200pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs | 49nC @ 10V, 200nC @ 10V | FET Type | 2 N-Channel (Dual), Schottky |
| FET Feature | Standard | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual), Schottky 30V 27A (Ta), 60A (Tc), 52A (Ta), 60A (Tc) 4.5W (Ta), 38W (Tc), 5W (Ta), 83W (Tc) Surface Mount 8-PowerPair® (6x5) | Current - Continuous Drain (Id) @ 25°C | 27A (Ta), 60A (Tc), 52A (Ta), 60A (Tc) |
