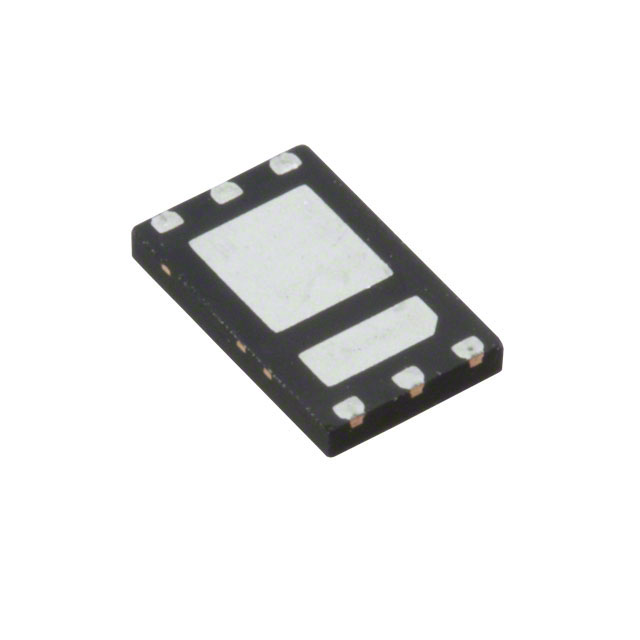

SIZ710DT-T1-GE3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIZ710DT-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIZ710DT-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIZ710DT-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET 2N-CH 20V 16A POWERPAIR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.247 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIZ710DT-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET 2N-CH 20V 16A POWERPAIR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83075 pcs | Data sheet | SiZ710DT |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Supplier Device Package | 6-PowerPair™ | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 6.8 mOhm @ 19A, 10V | Power - Max | 27W, 48W |
| Packaging | Tape & Reel (TR) | Package / Case | 6-PowerPair™ |
| Other Names | SIZ710DT-T1-GE3TR SIZ710DTT1GE3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 820pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 10V | FET Type | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array 2 N-Channel (Half Bridge) 20V 16A, 35A 27W, 48W Surface Mount 6-PowerPair™ | Current - Continuous Drain (Id) @ 25°C | 16A, 35A |
| Base Part Number | SIZ710 |
