SI5513CDC-T1-GE3

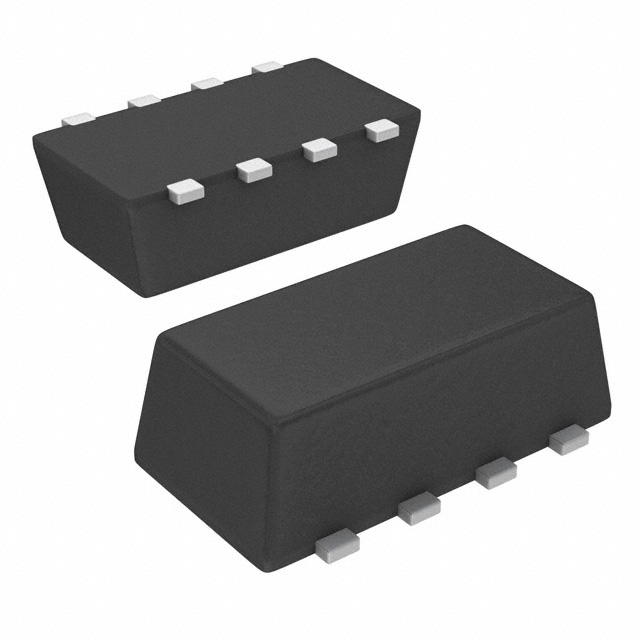

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI5513CDC-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI5513CDC-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI5513CDC-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N/P-CH 20V 4A 1206-8 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.088 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SI5513CDC-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N/P-CH 20V 4A 1206-8 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 263850 pcs | Data sheet | SI5513CDC |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Supplier Device Package | 1206-8 ChipFET™ | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 4.4A, 4.5V | Power - Max | 3.1W |
| Packaging | Tape & Reel (TR) | Package / Case | 8-SMD, Flat Lead |
| Other Names | SI5513CDC-T1-GE3TR SI5513CDCT1GE3 |
Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 285pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 4.2nC @ 5V | FET Type | N and P-Channel |
| FET Feature | Logic Level Gate | Drain to Source Voltage (Vdss) | 20V |
| Detailed Description | Mosfet Array N and P-Channel 20V 4A, 3.7A 3.1W Surface Mount 1206-8 ChipFET™ | Current - Continuous Drain (Id) @ 25°C | 4A, 3.7A |
| Base Part Number | SI5513 |
