SI5476DU-T1-GE3

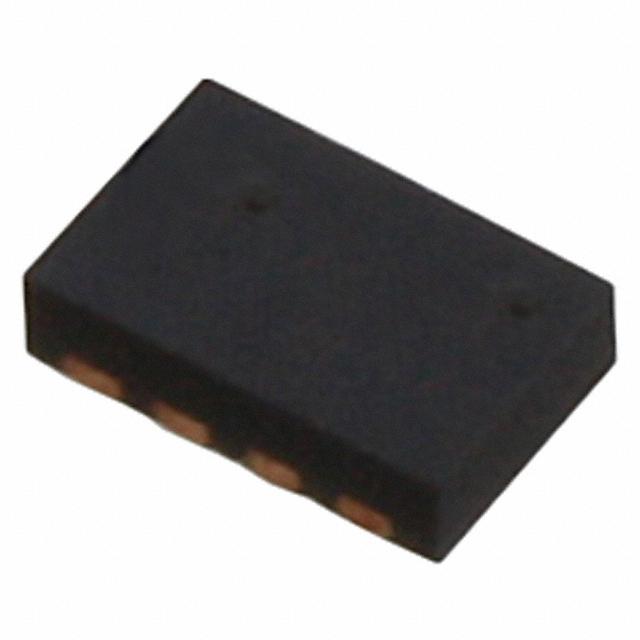

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SI5476DU-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SI5476DU-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SI5476DU-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 60V 12A PPAK CHIPFET |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.557 | $0.492 | $0.389 | $0.301 | $0.238 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SI5476DU-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 60V 12A PPAK CHIPFET | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79238 pcs | Data sheet | SI5476DU |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | 8-PowerPak® ChipFet (3x1.9) | Series | TrenchFET® |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 4.6A, 10V | Power Dissipation (Max) | 3.1W (Ta), 31W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerVDFN |
| Other Names | SI5476DU-T1-GE3CT | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 33 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1100pF @ 30V | Gate Charge (Qg) (Max) @ Vgs | 32nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 60V |
| Detailed Description | N-Channel 60V 12A (Tc) 3.1W (Ta), 31W (Tc) Surface Mount 8-PowerPak® ChipFet (3x1.9) | Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
