Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65713A0000R027

B65713A0000R027

B65713A0000R027

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65713A0000R027 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65713A0000R027
Manufacturer	EPCOS
Description	FERRITE CORE PM 12UH N27 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 2117 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$27.869	$24.773	$20.438	$19.819	$17.341

Product parameter
Data sheet

Product parameter

Part Number	B65713A0000R027	Manufacturer	EPCOS
Description	FERRITE CORE PM 12UH N27 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2117 pcs	Data sheet	B65713,14 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	-20%, +30%	Supplier Device Package	PM 87 x 70
Series	B65713	Other Names	495-5187 B65713A R 27 B65713AR27 B65713AR27-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	700
Material	N27	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2000	Inductance Factor (Al)	12µH
Height	35.00mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1530
Effective Magnetic Volume (Ve) mm³	133000	Effective Length (le) mm	146
Effective Area (Ae) mm²	910	Diameter	87.00mm
Core Type	PM	Core Factor (ΣI/A) mm1	0.16

Related products
Related news

Related products

Part#:~~B65713A0400A027~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE PM 400NH N27 2PCS~~
In Stock:~~1048~~

~~$29.488/pcs~~RFQ

B65714J1000T001 Image

Part#:~~B65714J1000T001~~
Manufacturers:~~EPCOS~~
Description:~~BOBBIN COIL FORMER PM 87 X 70~~
In Stock:~~24701~~

~~$1.339/pcs~~RFQ

Part#:~~B65701T0300G048~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE~~
In Stock:~~16012~~

~~$2.01/pcs~~RFQ

Part#:~~B65701W0000R087~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE P 6.4UH N87 2PCS~~
In Stock:~~48710~~

~~$0.776/pcs~~RFQ

B65701W0000Y038 Image

Part#:~~B65701W0000Y038~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE P 28UH T38 2PCS~~
In Stock:~~27521~~

~~$1.146/pcs~~RFQ

B65714K1020T001 Image

Part#:~~B65714K1020T001~~
Manufacturers:~~EPCOS~~
Description:~~BOBBIN COIL FORMER PM 87 X 70~~
In Stock:~~14189~~

~~$2.17/pcs~~RFQ

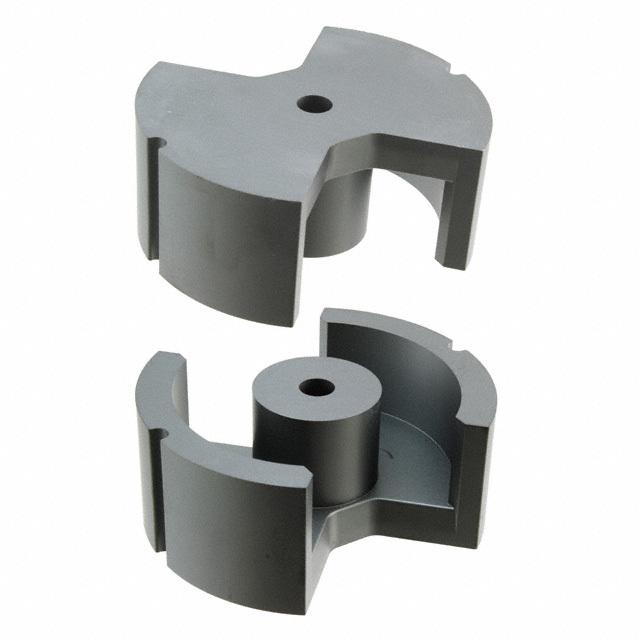

B65713A0000R087 Image
