B65701W0000Y038

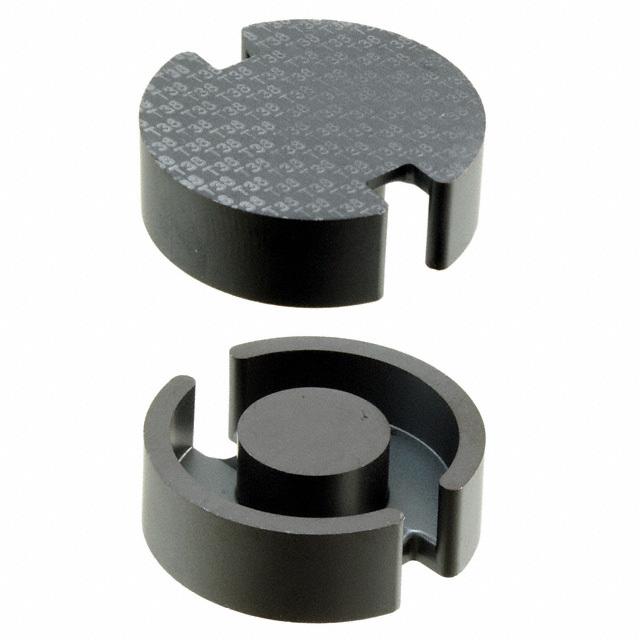

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65701W0000Y038 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65701W0000Y038 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65701W0000Y038 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE P 28UH T38 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.476 | $2.108 | $1.604 | $1.558 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.375 | $1.283 | $1.191 | $1.146 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65701W0000Y038 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE P 28UH T38 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27521 pcs | Data sheet | B65701,2,5, B65679 Series Datasheet |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | -30%, +40% | Supplier Device Package | P 30 x 19 |
| Series | B65701 | Other Names | 495-5184 B65701W Y 38 B65701WY38 B65701WY38-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 117 |
| Material | T38 | Manufacturer Standard Lead Time | 24 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 10000 | Inductance Factor (Al) | 28µH |
| Height | 9.50mm | Gap | Ungapped |
| Finish | Uncoated | Effective Permeability (µe) | 7070 |
| Effective Magnetic Volume (Ve) mm³ | 6670 | Effective Length (le) mm | 46 |
| Effective Area (Ae) mm² | 145 | Diameter | 30.50mm |
| Core Type | P (Pot Core) | Core Factor (ΣI/A) mm1 | 0.32 |
