Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65733A0000R027

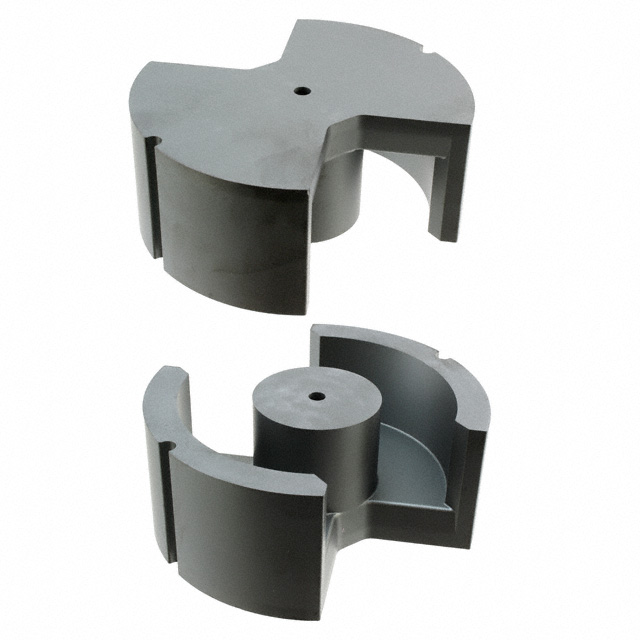

B65733A0000R027

B65733A0000R027

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65733A0000R027 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65733A0000R027
Manufacturer	EPCOS
Description	FERRITE CORE PM 16UH N27 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 745 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	26 pcs	50 pcs
Reference Price (In US Dollars)	$65.364	$58.10	$47.933	$46.48

Product parameter
Data sheet

Product parameter

Part Number	B65733A0000R027	Manufacturer	EPCOS
Description	FERRITE CORE PM 16UH N27 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	745 pcs	Data sheet	B65733,34 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	-20%, +30%	Supplier Device Package	PM 114 x 93
Series	B65733	Other Names	495-5190 B65733A R 27 B65733AR27 B65733AR27-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Minimum Core Cross Section (Amin) mm²	1380
Material	N27	Manufacturer Standard Lead Time	24 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Initial Permeability (µi)	2000	Inductance Factor (Al)	16µH
Height	46.50mm	Gap	Ungapped
Finish	Uncoated	Effective Permeability (µe)	1480
Effective Magnetic Volume (Ve) mm³	344000	Effective Length (le) mm	200
Effective Area (Ae) mm²	1720	Diameter	114.00mm
Core Type	PM	Core Factor (ΣI/A) mm1	0.116
