Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B65701T1000A048

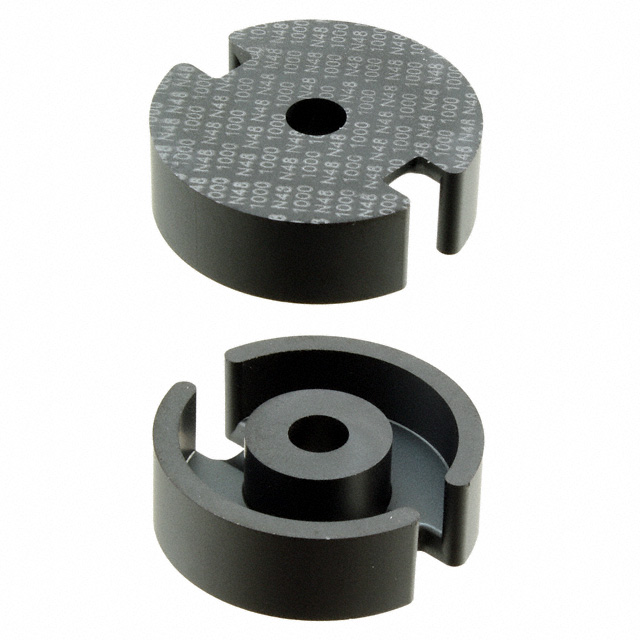

B65701T1000A048

B65701T1000A048

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65701T1000A048 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B65701T1000A048
Manufacturer	EPCOS
Description	FERRITE CORE P 1UH N48 2PCS
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	250 pcs	500 pcs	1000 pcs
~~In Stock~~ 24234 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$3.093	$2.634	$2.004	$1.947
	$1.718	$1.603	$1.489	$1.432

Product parameter
Data sheet

Product parameter

Part Number	B65701T1000A048	Manufacturer	EPCOS
Description	FERRITE CORE P 1UH N48 2PCS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24234 pcs	Data sheet	B65701,2,5, B65679 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±3%	Supplier Device Package	P 30 x 19
Series	B65701	Other Names	495-5182 B65701T1000A 48 B65701T1000A48 B65701T1000A48-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N48
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Factor (Al)	1µH
Height	9.50mm	Gap	Gapped
Finish	Uncoated	Effective Permeability (µe)	263
Effective Magnetic Volume (Ve) mm³	6120	Effective Length (le) mm	45
Effective Area (Ae) mm²	136	Diameter	30.50mm
Core Type	P (Pot Core)	Core Factor (ΣI/A) mm1	0.33
