Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0022X830

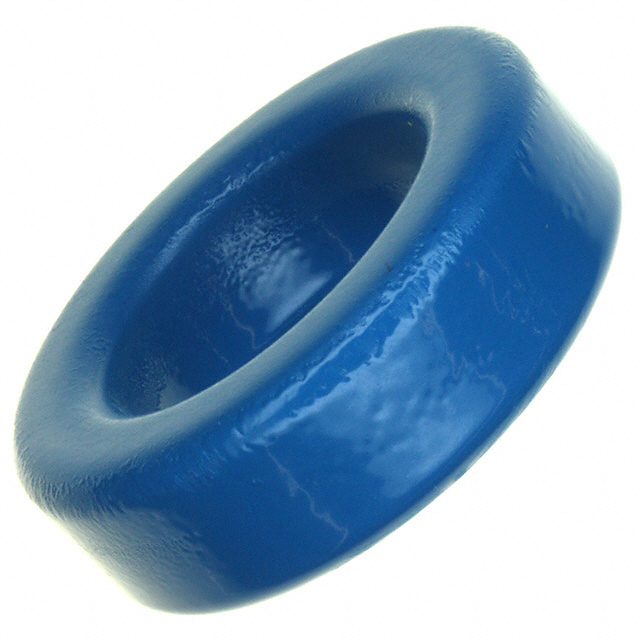

B64290L0022X830

B64290L0022X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0022X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0022X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 43099 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.693	$1.443	$1.098	$1.066
	$0.941	$0.878	$0.816	$0.784

Product parameter
Data sheet

Product parameter

Part Number	B64290L0022X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	43099 pcs	Data sheet	Ferrites, Accessories General Info B64290L0022 Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-3846 B64290L 22X830 B64290L 22X830 B64290L22X830
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4300
Inductance Factor (Al)	5µH	Height	13.60mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	9862	Effective Length (le) mm	103
Effective Area (Ae) mm²	95.75	Diameter	43.60mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	1.08
