Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290A0711X830

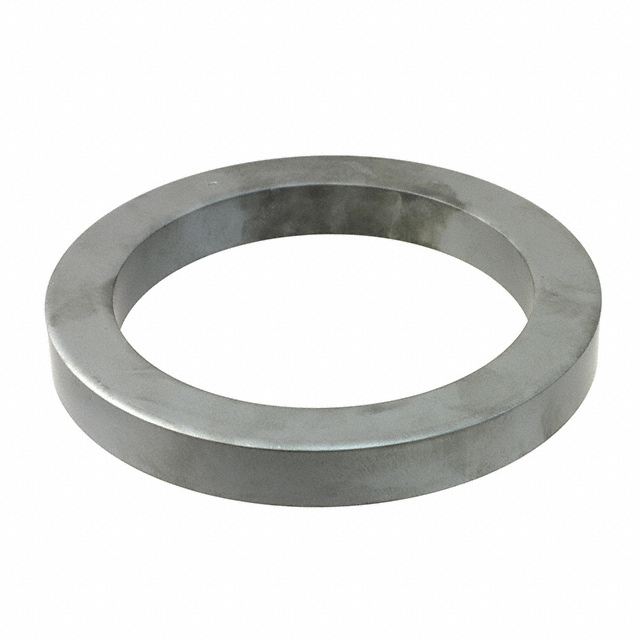

B64290A0711X830

B64290A0711X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290A0711X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290A0711X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.2UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 521 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
Reference Price (In US Dollars)	$96.185	$85.498	$70.536	$68.398

Product parameter
Data sheet

Product parameter

Part Number	B64290A0711X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.2UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	521 pcs	Data sheet	Ferrites, Accessories General Info B64290A0711 Series Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	R 202 x 153 x 25
Series	B64290	Other Names	495-5066 B64290A 711X830 B64290A711X830 B64290A711X830-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	3700
Inductance Factor (Al)	5.2µH	Height	25.00mm
Gap	Ungapped	Finish	Uncoated
Effective Magnetic Volume (Ve) mm³	335030	Effective Length (le) mm	550.5
Effective Area (Ae) mm²	608.6	Diameter	202.00mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	0.9
