Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0038X038

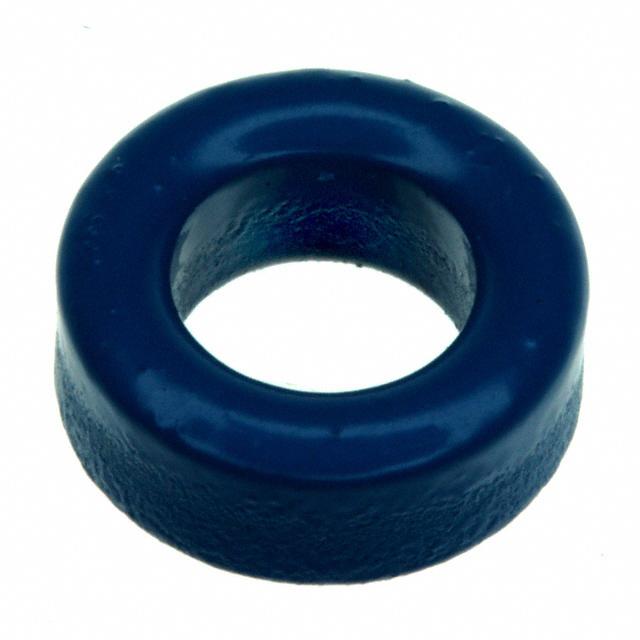

B64290L0038X038

B64290L0038X038

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0038X038 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0038X038
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 4.09UH T38
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 587508 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.121	$0.097	$0.082	$0.072	$0.064
	$0.056	$0.051	$0.043	$0.04

Product parameter
Data sheet

Product parameter

Part Number	B64290L0038X038	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 4.09UH T38	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	587508 pcs	Data sheet	B64290L0038 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±30%	Supplier Device Package	-
Series	B64290	Other Names	495-3847 B64290L 38X 38 B64290L 38X 38 B64290L38X38
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	T38
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	10000
Inductance Factor (Al)	4.09µH	Height	4.75mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	188	Effective Length (le) mm	24.07
Effective Area (Ae) mm²	7.83	Diameter	10.80mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	3.07
