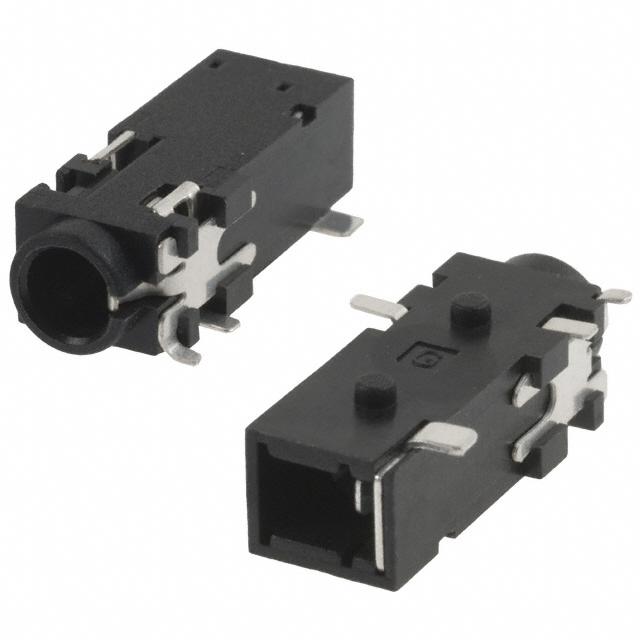

SJ-43514-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-43514-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-43514-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-43514-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 3.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.413 | $0.363 | $0.341 | $0.327 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.313 | $0.284 | $0.256 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-43514-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 4COND 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80484 pcs | Data sheet | SJ-4351x-SMT |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | SJ | Panel Hole Size | - |
| Packaging | Original-Reel® | Other Names | CP-43514SJDKR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Does Not Contain Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Female |
| Features | Board Guide | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.142" (3.60mm) |
