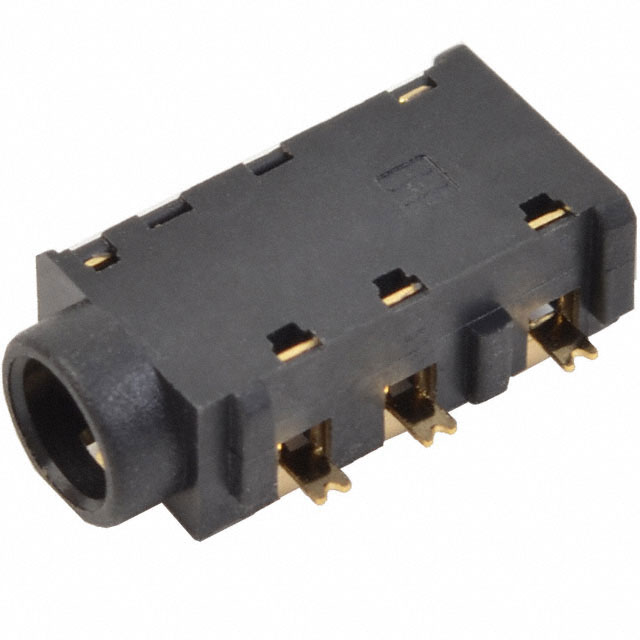

SJ-43615TS-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-43615TS-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-43615TS-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-43615TS-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 3.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.503 | $0.444 | $0.418 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.40 | $0.383 | $0.348 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-43615TS-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 4COND 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60401 pcs | Data sheet | SJ-4361x-SMT |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | SJ | Panel Hole Size | - |
| Packaging | Cut Tape (CT) | Other Names | 045-1523R CP-43615TSSJCT |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 4 Conductors, 5 Contacts |
| Mounting Type | Board Cutout, Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | 0.551" (14.00mm) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | - |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Gold | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.142" (3.60mm) |
