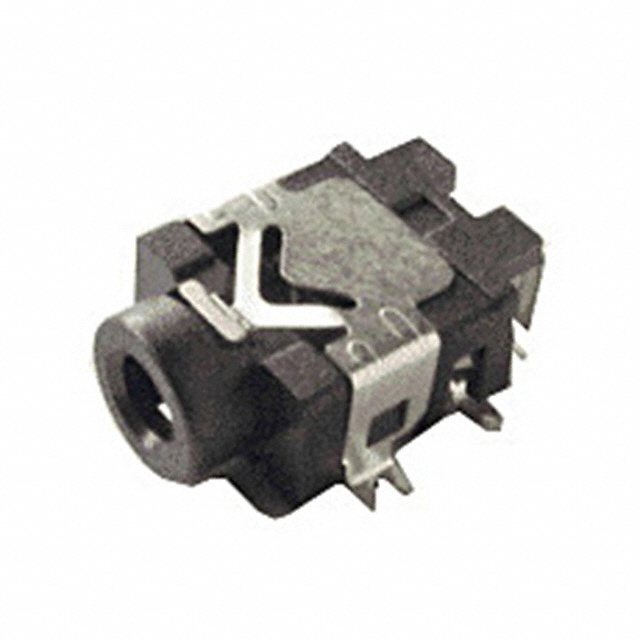

SJ-42535TS-SMT-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-42535TS-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-42535TS-SMT-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-42535TS-SMT-1 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 2.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | SJ-42535TS-SMT-1 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 4COND 2.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5070 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Bulk | Other Names | CP-42535TS-SMT-1 CP-42535TS-SMT-1-ND CP-42535TSSJ |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 4 Conductors, 5 Contacts |
| Mounting Type | Surface Mount, Right Angle | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | Board Guide |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder | Current Rating | 300mA |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
