SJ-43502PM

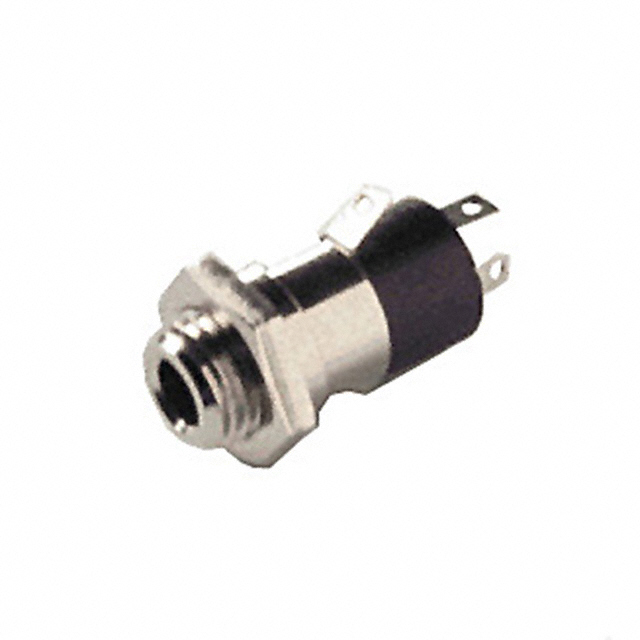

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-43502PM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-43502PM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-43502PM |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 3.5MM PNL MT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-43502PM | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 4COND 3.5MM PNL MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5691 pcs | Data sheet | SJ-43502PM |
| Category | Connectors, Interconnects | Voltage - Rated | 34VAC/DC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | - | Panel Hole Size | 0.276" (7.00mm) |
| Packaging | Bulk | Other Names | CP-43502PM |
| Operating Temperature | -20°C ~ 70°C | Number of Positions/Contacts | 4 Conductors, 4 Contacts |
| Mounting Type | Panel Mount | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Does Not Contain Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Gender | Female | Features | Mounting Hardware |
| Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder Eyelet(s) | Current Rating | 1A |
| Contact Material - Plating | Nickel | Contact Material | Copper Alloy |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | Copper Alloy | Body Color | Silver, Black |
| Actual Diameter | 0.142" (3.60mm) |
