SJ-42526-SMT-TR

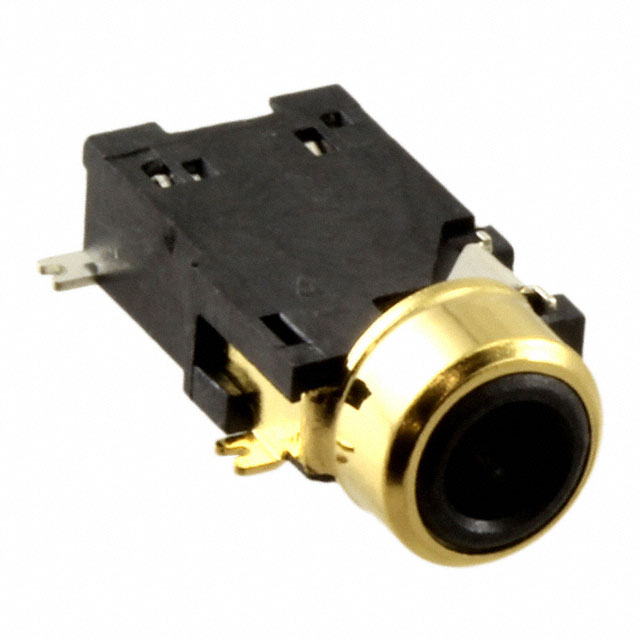

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SJ-42526-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-42526-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SJ-42526-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 2.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SJ-42526-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK 4COND 2.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5340 pcs | Data sheet | SJ-4252x-SMT |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Stereo (4 Conductor, TRRS) | Shielding | Unshielded |
| Series | SJ | Panel Hole Size | - |
| Packaging | Tape & Reel (TR) | Other Names | CP-42526SJTR SJ-42526-SMT SJ42526SMTTR |
| Operating Temperature | -20°C ~ 85°C | Number of Positions/Contacts | 4 Conductors, 6 Contacts |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Two Switches | Insulation Color | - |
| Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone | Includes | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | Board Guide | Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder |
| Current Rating | 300mA | Contact Material - Plating | Gold, Silver |
| Contact Material | Brass, Copper Alloy, Phosphor Bronze | Connector Type | Phone Jack |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.102" (2.60mm) |
