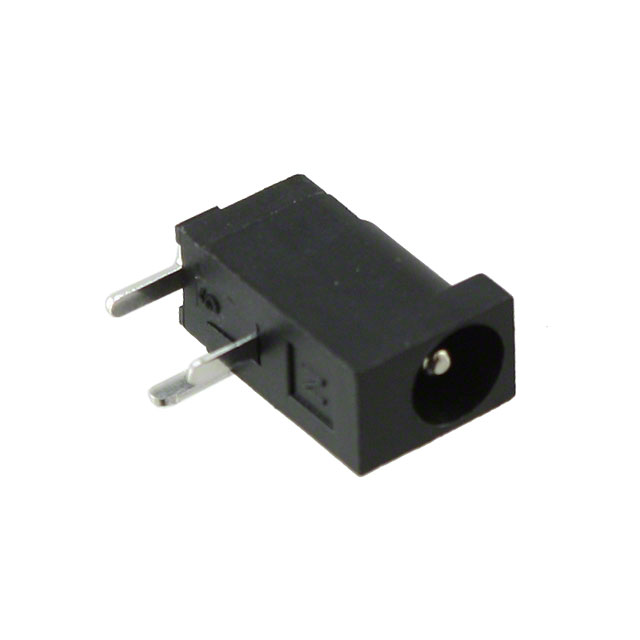

PJ-007
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-007 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-007 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-007 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.35X3.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.289 | $0.253 | $0.238 | $0.228 | $0.218 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.198 | $0.179 | $0.159 | $0.144 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-007 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 1.35X3.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140392 pcs | Data sheet | PJ-007 |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0071R CP-2519 PJ007 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | - |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | - |
| Detailed Description | Power Barrel Connector Jack 1.35mm ID (0.053"), 3.50mm OD (0.138") Through Hole, Right Angle | Current Rating | 2A |
| Contact Material - Plating | Silver | Contact Material | Brass |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.051" (1.30mm ID), 0.165" (4.20mm OD) |
