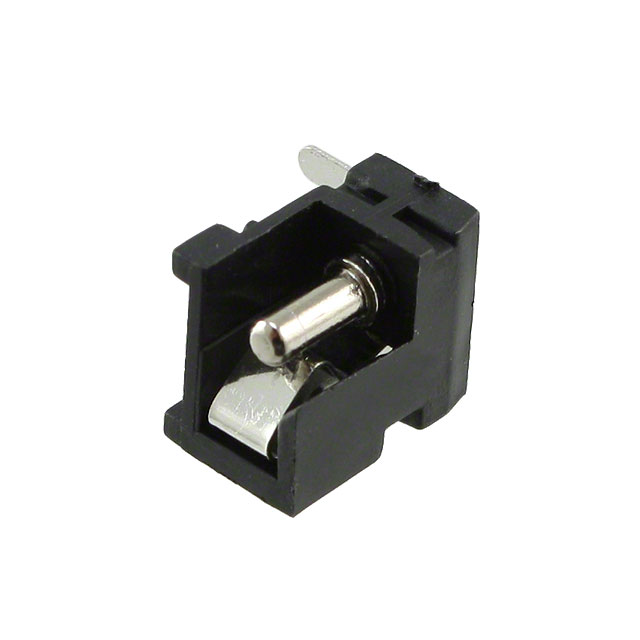

PJ-003B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-003B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-003B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-003B |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN POWER JACK 2.5MM ID SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.276 | $0.258 | $0.232 | $0.206 | $0.198 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.18 | $0.172 | $0.142 | $0.129 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-003B | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN POWER JACK 2.5MM ID SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157232 pcs | Data sheet | PJ-003B |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0093R CP-003B PJ003B |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Mating Length/Depth | 0.256" (6.50mm) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.50mm ID (0.098") |
| Includes | - | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | - |
| Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098") Through Hole, Right Angle | Current Rating | 2.5A |
| Contact Material - Plating | Tin | Contact Material | Brass; Copper Alloy |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.098" (2.50mm) |
