PJ-005B

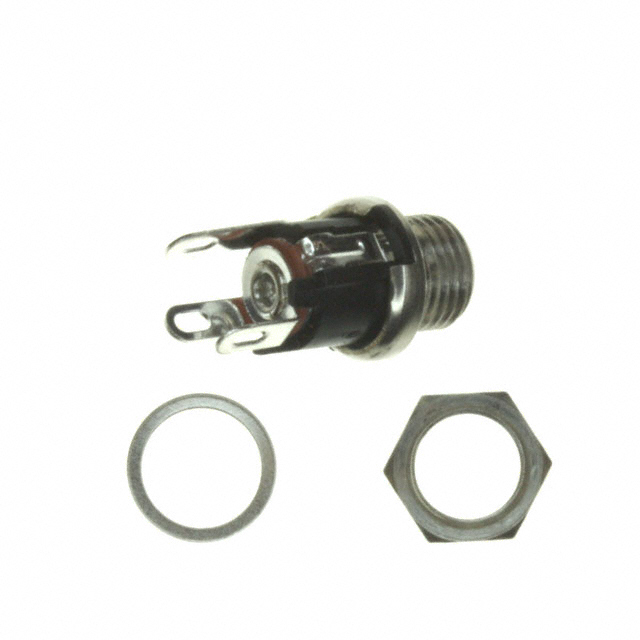

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-005B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-005B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-005B |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 2.5X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.904 | $0.868 | $0.795 | $0.759 | $0.723 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.633 | $0.614 | $0.524 | $0.488 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-005B | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 2.5X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 67320 pcs | Data sheet | PJ-005B |
| Category | Connectors, Interconnects | Voltage - Rated | 16VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0188R CP-6 PJ005B |
| Operating Temperature | -40°C ~ 70°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.354" (9.00mm) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch, Normally Closed |
| Insulation Color | - | Ingress Protection | - |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") | Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Male |
| Features | Mounting Hardware, Thread Lock | Detailed Description | Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount, Through Hole |
| Current Rating | 5A | Contact Material - Plating | Silver |
| Contact Material | Brass, Phosphor Bronze | Connector Type | Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Body Material | Brass |
| Body Color | Silver, Black | Actual Diameter | 0.098" (2.50mm ID), 0.224" (5.70mm OD) |
