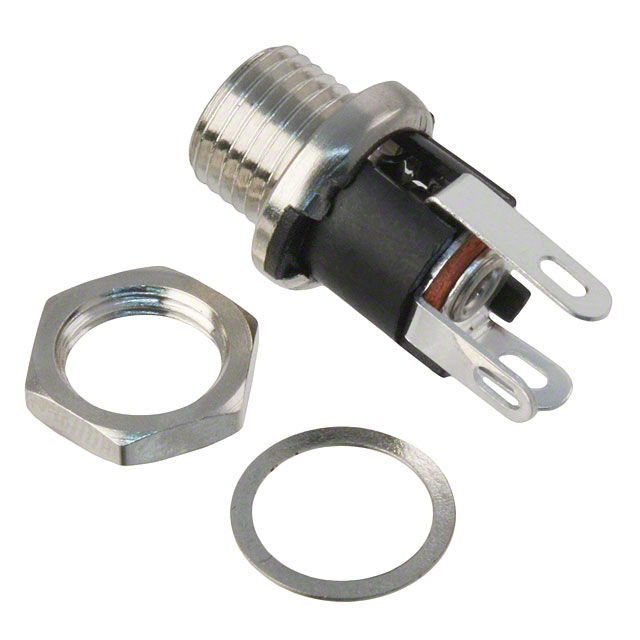

PJ-005A
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PJ-005A with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-005A with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PJ-005A |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 2X5.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.943 | $0.857 | $0.804 | $0.769 | $0.734 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.664 | $0.612 | $0.524 | $0.489 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | PJ-005A | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN PWR JACK 2X5.5MM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 77272 pcs | Data sheet | PJ-005A |
| Category | Connectors, Interconnects | Voltage - Rated | 24VDC |
| Thread Size | - | Termination | Solder Eyelet(s) |
| Shielding | Unshielded | Series | - |
| Packaging | Bulk | Other Names | 045-0187R CP-5 PJ005A |
| Operating Temperature | -40°C ~ 70°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Length/Depth | 0.354" (9.00mm) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch, Normally Closed | Insulation Color | - |
| Ingress Protection | - | Industry Recognized Mating Diameter | 2.10mm ID (0.083"), 5.50mm OD (0.217") |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Male | Features | Mounting Hardware, Thread Lock |
| Detailed Description | Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount, Through Hole | Current Rating | 5A |
| Contact Material - Plating | Silver | Contact Material | Brass, Phosphor Bronze |
| Connector Type | Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material | Brass | Body Color | Silver, Black |
| Actual Diameter | 0.078" (2.00mm ID), 0.224" (5.70mm OD) |
