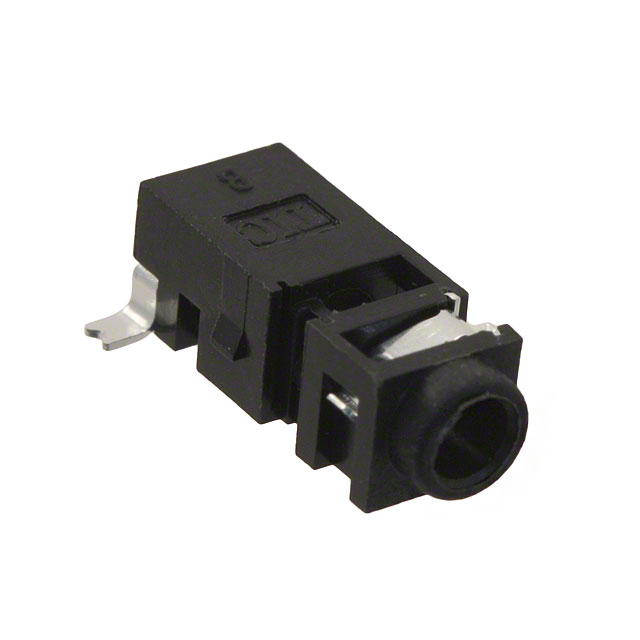

MJ-2523-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ-2523-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ-2523-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ-2523-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 2.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 3000 pcs | ||
|---|---|---|---|---|---|
| $0.171 | $0.16 | $0.155 | |||
| 5000 pcs | 10000 pcs | 25000 pcs | |||
| $0.149 | $0.142 | $0.139 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ-2523-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 2.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 169385 pcs | Data sheet | MJ-2523-SMT-TR |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Tape & Reel (TR) | Other Names | CP-2523MJTR MJ-2523-SMT MJ2523SMTTR |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Gender | Female | Features | - |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder | Current Rating | 1A |
| Contact Material - Plating | Silver | Contact Material | Brass; Copper Alloy |
| Connector Type | Phone Jack | California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening | - | Body Material | - |
| Body Color | Black | Actual Diameter | 0.102" (2.60mm) |
