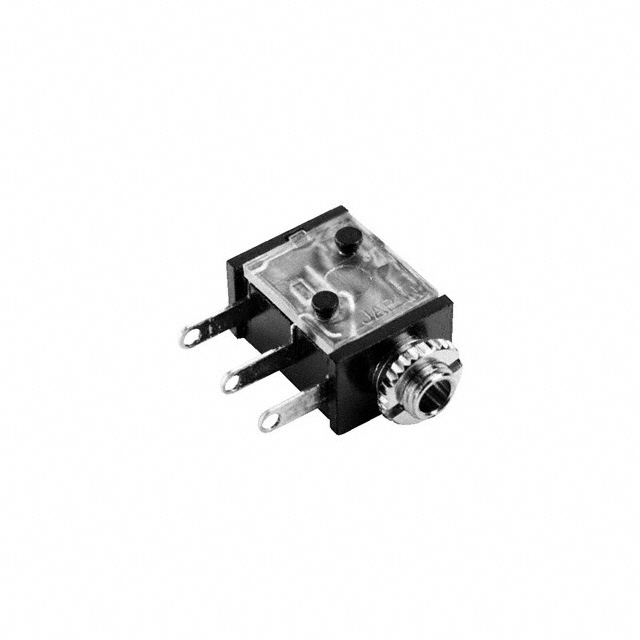

MJ-2502
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ-2502 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ-2502 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ-2502 |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 2.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ-2502 | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 2.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4561 pcs | Data sheet | MJ-2502 |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M4 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | CP-2502 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Internal Switch(s) | Single Switch |
| Insulation Color | - | Industry Recognized Mating Diameter | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone |
| Includes | 2 pcs - 1 Connector, 1 Nut | Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female | Features | Mounting Hardware, Thread Lock |
| Detailed Description | 2.50mm (0.094", 3/32", Sub Mini, Miniature) - Headphone Phone Jack Mono Connector Solder Eyelet(s) | Current Rating | 1A |
| Contact Material - Plating | Silver | Contact Material | Brass |
| Connector Type | Phone Jack | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.102" (2.60mm) |
