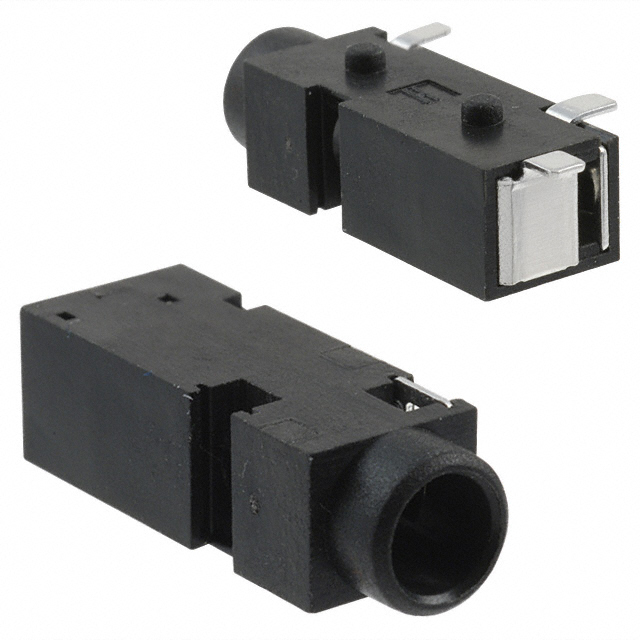

MJ-3523-SMT-TR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ-3523-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ-3523-SMT-TR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ-3523-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 3.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.37 | $0.326 | $0.306 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.294 | $0.281 | $0.255 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ-3523-SMT-TR | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 3.5MM SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91645 pcs | Data sheet | MJ-3523-SMT |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | - | Termination | Solder |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | - |
| Packaging | Cut Tape (CT) | Other Names | 045-1241R CP-3523MJCT |
| Operating Temperature | -25°C ~ 85°C | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polyamide (PA6T), Nylon 6T | Gender | Female |
| Features | Board Guide | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder |
| Current Rating | 1A | Contact Material - Plating | Silver |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | - | Body Color | Black |
| Actual Diameter | 0.142" (3.60mm) |
