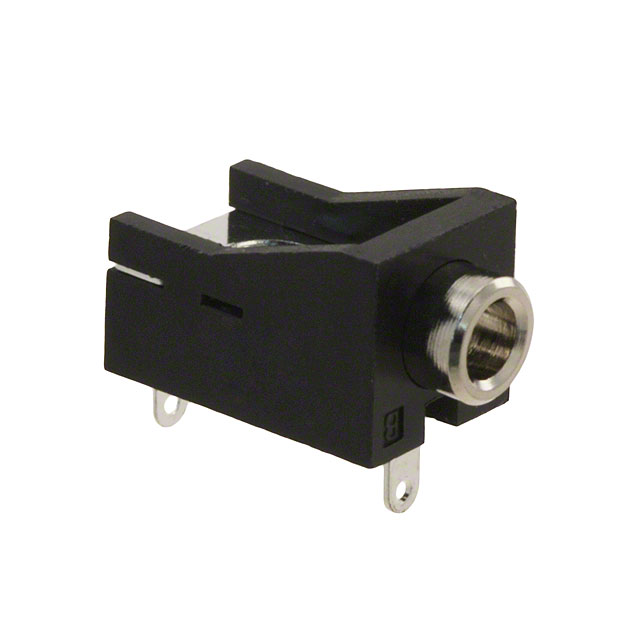

MJ-3536N
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MJ-3536N with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MJ-3536N with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MJ-3536N |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK MONO 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.295 | $0.26 | $0.245 | $0.235 | $0.225 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.204 | $0.184 | $0.163 | $0.148 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | MJ-3536N | Manufacturer | CUI, Inc. |
|---|---|---|---|
| Description | CONN JACK MONO 3.5MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 162139 pcs | Data sheet | MJ-3536N |
| Category | Connectors, Interconnects | Voltage - Rated | 12VDC |
| Thread Size | M6 | Termination | Solder Eyelet(s) |
| Signal Lines | Mono | Shielding | Unshielded |
| Series | - | Panel Hole Size | 0.236" (5.99mm) |
| Packaging | Bulk | Other Names | 045-0005R CP-3536N MJ3536N |
| Operating Temperature | - | Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Length/Depth | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Single Switch | Insulation Color | - |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | Includes | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Gender | Female |
| Features | - | Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s) |
| Current Rating | 1A | Contact Material - Plating | Tin |
| Contact Material | Brass; Copper Alloy | Connector Type | Phone Jack |
| California Prop 65 | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. | Cable Opening | - |
| Body Material | Brass | Body Color | Black |
| Actual Diameter | 0.142" (3.60mm) |
