Home > Products > Transformers > Pulse Transformers > S558-5999-03-F

S558-5999-03-F

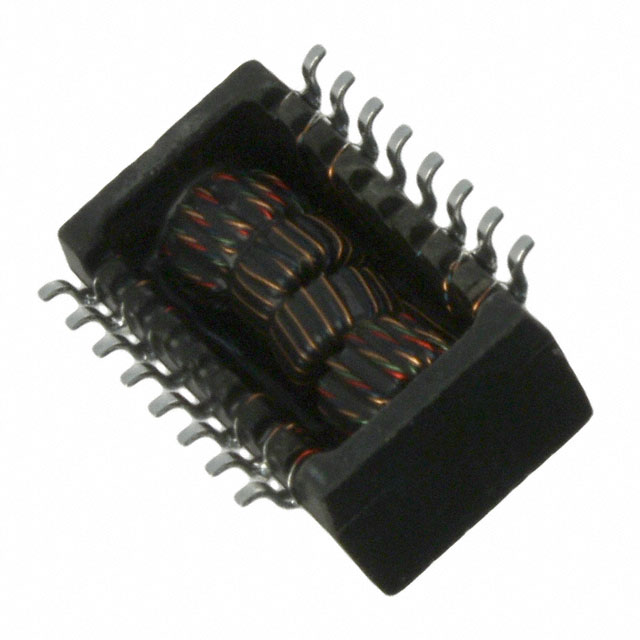

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S558-5999-03-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S558-5999-03-F
Manufacturer	Bel
Description	MODULE XFRMR LAN ISOLATION 10B-T
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 51522 pcs
Reference Price (In US Dollars)	1800 pcs
Reference Price (In US Dollars)	$0.623

Product parameter
Data sheet

Product parameter

Part Number	S558-5999-03-F	Manufacturer	Bel
Description	MODULE XFRMR LAN ISOLATION 10B-T	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51522 pcs	Data sheet	S558-5999-03-F Drawing
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1CT:1CT	Transformer Type	LAN
Size / Dimension	0.485" L x 0.285" W (12.32mm x 7.24mm)	Series	-
Packaging	Tape & Reel (TR)	Other Names	507-1472-2 S558599903F Y558599903-F
Operating Temperature	-	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	420µH
Height - Seated (Max)	0.225" (5.72mm)	Energy Time (E.T.)	-
