Home > Products > Transformers > Pulse Transformers > S558-5500-JD

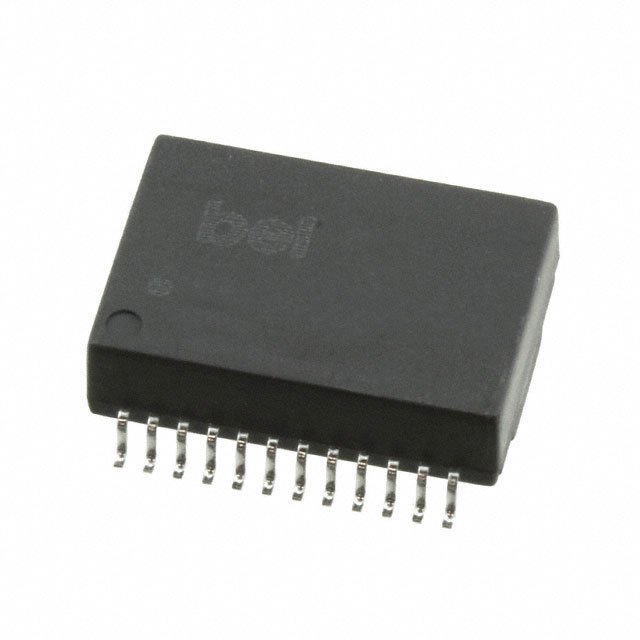

S558-5500-JD

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S558-5500-JD with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S558-5500-JD
Manufacturer	Bel
Description	XFRMR LAN 2.5G 60W POE SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 36367 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$1.813	$1.47	$1.189	$1.114	$1.064

Product parameter
Data sheet

Product parameter

Part Number	S558-5500-JD	Manufacturer	Bel
Description	XFRMR LAN 2.5G 60W POE SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36367 pcs	Data sheet	S558-5500-JD Prelim
Category	Transformers	Turns Ratio - Primary:Secondary	1CT:1CT
Transformer Type	LAN 2.5G Base-T, Power over Ethernet (PoE)	Size / Dimension	0.690" L x 0.600" W (17.53mm x 15.24mm)
Series	-	Packaging	Original-Reel®
Other Names	507-2170-6	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	2 (1 Year)
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	180µH	Height - Seated (Max)	0.225" (5.71mm)
Energy Time (E.T.)	-
