Home > Products > Transformers > Pulse Transformers > S558-5500-25-F

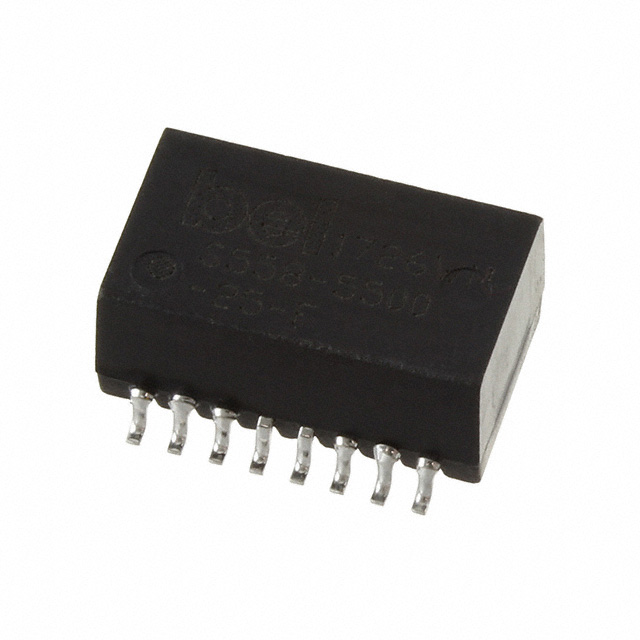

S558-5500-25-F

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S558-5500-25-F with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S558-5500-25-F
Manufacturer	Bel
Description	MODULE XFRMR LAN 10/100 POE SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 63281 pcs
Reference Price (In US Dollars)	900 pcs	1800 pcs	6300 pcs
Reference Price (In US Dollars)	$0.426	$0.378	$0.346

Product parameter
Data sheet

Product parameter

Part Number	S558-5500-25-F	Manufacturer	Bel
Description	MODULE XFRMR LAN 10/100 POE SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	63281 pcs	Data sheet	S558-5500-25-F
Category	Transformers	Weight	-
Turns Ratio - Primary:Secondary	1:1 Transmitter, 1:1 Receiver	Transformer Type	LAN 10/100 Base-T, Power over Ethernet (PoE)
Size / Dimension	0.485" L x 0.285" W (12.32mm x 7.24mm)	Series	-
Packaging	Tape & Reel (TR)	Other Names	507-1724-2 S558550025F Y558550025-F
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	350µH
Height - Seated (Max)	0.225" (5.72mm)	Energy Time (E.T.)	-
